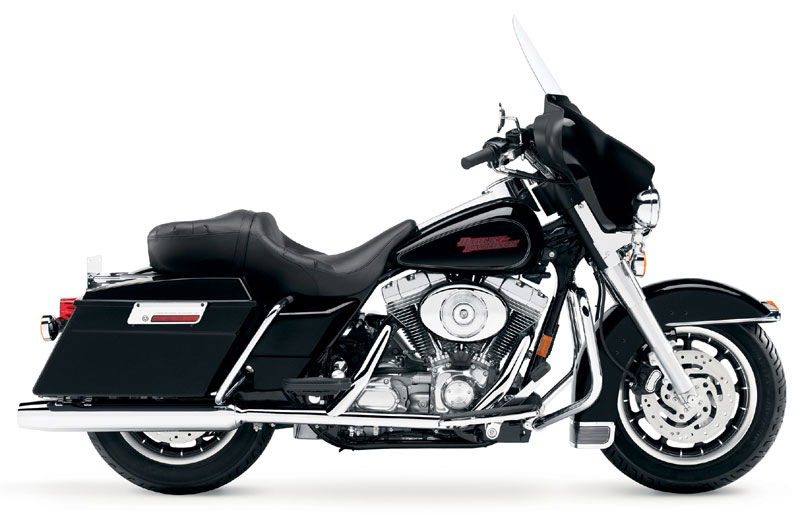

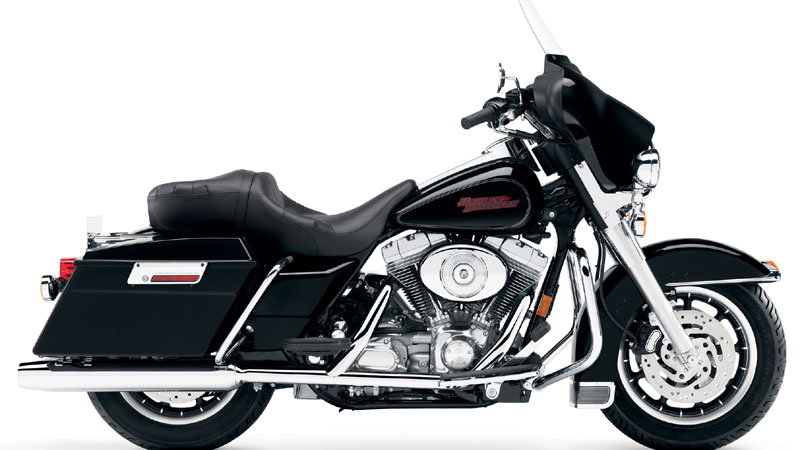

Electra Glide Standard (FLHTI) review
This is the first time that the basic Electra Glide model has been imported into the UK.
Not tested
Serving as an entry level model into the Harley touring range, the FLHTI has locking GTX hard saddlebags, classic-looking H-D fork- mounted front fairing with integral instruments, air-adjustable rear suspension, triple disc brakes and auxillary lamps as standard.
Not tested
Serving as an entry level model into the Harley touring range, the FLHTI has locking GTX hard saddlebags, classic-looking H-D fork- mounted front fairing with integral instruments, air-adjustable rear suspension, triple disc brakes and auxillary lamps as standard.
Not tested
Serving as an entry level model into the Harley touring range, the FLHTI has locking GTX hard saddlebags, classic-looking H-D fork- mounted front fairing with integral instruments, air-adjustable rear suspension, triple disc brakes and auxillary lamps as standard.
| Length (mm) | 2440 |
| Dryweight (kg) | 332 |
| Seats | 2 |
| Seat Height (mm) | 693 |
| Suspension Front | 41.3mm forks |
| Suspension Rear | Air assisted shocks |
| Adjustability Front | Triple Circuit Damping (TCD) |
| Wheels Front | 16" cast spoked |
| Wheels Rear | 16" cast spoked |
| Tyres | Dunlop |
| Tyres Front | MT90B16 72H |
| Tyres Rear | MU85B16 77H |
| Brakes Front | Twin 292mm discs, four piston calipers |
| Brakes Rear | Single 292mm disc, four piston caliper |
| Tank Capacity (litres) | 19.1 |
| Wheelbase (mm) | 1592 |
| Ground Clearance (mm) | 130 |
| Rake (degrees) | 26 |
| Trail (mm) | 158 |
| Chassis | Mild steel, square-section backbone with twin downtubes |
| Length (mm) | 2440 |
| Dryweight (kg) | 332 |
| Seats | 2 |
| Seat Height (mm) | 693 |
| Suspension Front | 41.3mm forks |
| Suspension Rear | Air assisted shocks |
| Adjustability Front | Triple Circuit Damping (TCD) |
| Wheels Front | 16" cast spoked |
| Wheels Rear | 16" cast spoked |
| Tyres | Dunlop |
| Tyres Front | MT90B16 72H |
| Tyres Rear | MU85B16 77H |
| Brakes Front | Twin 292mm discs, four piston calipers |
| Brakes Rear | Single 292mm disc, four piston caliper |
| Tank Capacity (litres) | 19.1 |
| Wheelbase (mm) | 1592 |
| Ground Clearance (mm) | 130 |
| Rake (degrees) | 26 |
| Trail (mm) | 158 |
| Chassis | Mild steel, square-section backbone with twin downtubes |
| Cubic Capacity (cc) | 1449 |
| Torque (ft/lb) | 80 |
| Torque Peak (rpm) | 3400 |
| Bore (mm) | 95.3 |
| Stroke (mm) | 101.6 |
| Compression Ratio | 8.9:1 |
| Cooling | Air cooled |
| Fuel Delivery | Electronic Sequential Port Fuel Injection (ESPFI) |
| Stroke Type | Four Stroke |
| Drive | Belt |
| Cubic Capacity (cc) | 1449 |
| Torque (ft/lb) | 80 |
| Torque Peak (rpm) | 3400 |
| Bore (mm) | 95.3 |
| Stroke (mm) | 101.6 |
| Compression Ratio | 8.9:1 |
| Cooling | Air cooled |
| Fuel Delivery | Electronic Sequential Port Fuel Injection (ESPFI) |
| Stroke Type | Four Stroke |
| Drive | Belt |
