Lightning CityX review
The CityX is capable, quirky, good value and produces plenty of low down torque. It’s a fun tool that will be at home on city streets and rural B-roads
Member for

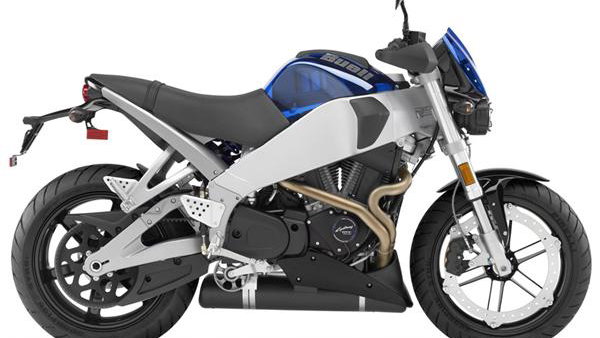

54 years 8 monthsThe CityX (say it ‘City Cross’) is, in true Buell style, something different, a little left field and outside of the box. The basis of the machine is the XB9R Firebolt, launched in 2002. Although the basic Harley-Davidson motor remains, capacity is up to 984cc to provide a wide, smooth delivery of power, perfect for the city streets.
Initial concerns were that Buell should have used the bigger XB12R motor, but it isn’t needed. For a start the smaller engine allows for better traction and low speed control, has a wider spread of power and improved fuel economy (50mpg is claimed) over its bigger brother. Buell has also remapped the fuel injection to pass impending European Cat II fuel emissions.
The CityX utilises the three basic principles of Buell technology; mass centralisation of the major components (engine, shock, frame) to improve handling; chassis rigidity to maximise feedback; and low unsprung weight in the form of lighter wheels and brakes. The large, rim-mounted ZTL (Zero Torsional Load) front disc plays a part, transferring braking forces directly to the wheel rim rather than via the spokes. This means the wheel can be lighter but still deliver superb stopping power. And boy do they stop well!
Aesthetically, Buell wanted to try a new approach. The air box cover, fly screen and part of the tail are all translucent blue in a kind of funky iMac style, while the hand guards and headlight cage help give the CityX a mean urban streetfighter look.
A comfortable yet aggressive riding position comes courtesy of a tall seat and motocross-style bars, which are wide enough to provide good leverage while hooning around, but also narrow enough not to hit cars while filtering.
Mirrors though are a bit on the poor side, being small and continually in need of readjusting. The rubber-mounted engine doesn’t vibrate them as much you would expect but even so visibility behind is not great.
On the plus side, the CityX’s clutch is remarkably light. And thankfully so, as most of its time will be spent posing and dodging traffic along the more affluent city streets. The gearbox retains the characteristic Harley clunk but is easy to get used to and to me it just adds a little personality.
Switchgear is basic Buell, in other words simple to use and easy to reach. The clocks are nice looking and a doddle to read, with a cool blue backlight. Their digital readout gives you two trips, an odometer, a clock and a fuel reserve light. Don’t forget these babies will only do around eight miles once you hit reserve!
The one real flaw I did come across centres around the rear of the bike. Forget tail packs or pillions – unless they are the size of a small child – as the rear seat is absolutely miniscule. The tiny rear hugger does its intended job by protecting the shock, but it does mean the rear of the bike is very exposed. Expect a very wet and splattered back if riding in the rain!
For the first time a Buell comes shod with Pirelli tyres as standard – chunky-looking Scorpion Syncs in this case. This move away from the Dunlop D207/8 series comes from a desire to clothe the CityX with rubber that not only looks like aggressive supermoto-ish tyres, but also works admirably in all weather conditions. They don’t disappoint.
The majority of the CityX’s riding will take place on urban A and B roads, and that’s a good thing as above 70mph she does start to shake her head, which is unnerving. Stick under this and you’ll get the best from the big V-twin and its otherwise capable chassis.
The CityX (say it ‘City Cross’) is, in true Buell style, something different, a little left field and outside of the box. The basis of the machine is the XB9R Firebolt, launched in 2002. Although the basic Harley-Davidson motor remains, capacity is up to 984cc to provide a wide, smooth delivery of power, perfect for the city streets.
Initial concerns were that Buell should have used the bigger XB12R motor, but it isn’t needed. For a start the smaller engine allows for better traction and low speed control, has a wider spread of power and improved fuel economy (50mpg is claimed) over its bigger brother. Buell has also remapped the fuel injection to pass impending European Cat II fuel emissions.
The CityX utilises the three basic principles of Buell technology; mass centralisation of the major components (engine, shock, frame) to improve handling; chassis rigidity to maximise feedback; and low unsprung weight in the form of lighter wheels and brakes. The large, rim-mounted ZTL (Zero Torsional Load) front disc plays a part, transferring braking forces directly to the wheel rim rather than via the spokes. This means the wheel can be lighter but still deliver superb stopping power. And boy do they stop well!
Aesthetically, Buell wanted to try a new approach. The air box cover, fly screen and part of the tail are all translucent blue in a kind of funky iMac style, while the hand guards and headlight cage help give the CityX a mean urban streetfighter look.
A comfortable yet aggressive riding position comes courtesy of a tall seat and motocross-style bars, which are wide enough to provide good leverage while hooning around, but also narrow enough not to hit cars while filtering.
Mirrors though are a bit on the poor side, being small and continually in need of readjusting. The rubber-mounted engine doesn’t vibrate them as much you would expect but even so visibility behind is not great.
On the plus side, the CityX’s clutch is remarkably light. And thankfully so, as most of its time will be spent posing and dodging traffic along the more affluent city streets. The gearbox retains the characteristic Harley clunk but is easy to get used to and to me it just adds a little personality.
Switchgear is basic Buell, in other words simple to use and easy to reach. The clocks are nice looking and a doddle to read, with a cool blue backlight. Their digital readout gives you two trips, an odometer, a clock and a fuel reserve light. Don’t forget these babies will only do around eight miles once you hit reserve!
The one real flaw I did come across centres around the rear of the bike. Forget tail packs or pillions – unless they are the size of a small child – as the rear seat is absolutely miniscule. The tiny rear hugger does its intended job by protecting the shock, but it does mean the rear of the bike is very exposed. Expect a very wet and splattered back if riding in the rain!
For the first time a Buell comes shod with Pirelli tyres as standard – chunky-looking Scorpion Syncs in this case. This move away from the Dunlop D207/8 series comes from a desire to clothe the CityX with rubber that not only looks like aggressive supermoto-ish tyres, but also works admirably in all weather conditions. They don’t disappoint.
The majority of the CityX’s riding will take place on urban A and B roads, and that’s a good thing as above 70mph she does start to shake her head, which is unnerving. Stick under this and you’ll get the best from the big V-twin and its otherwise capable chassis.
Length (mm) | 1935 |
Width (mm) | 820 |
Height (mm) | 1075 |
Dryweight (kg) | 177 |
Seats | 0 |
Suspension Front | 43 mm Showa inverted fork |
Suspension Rear | Showa coil-over monoshock with remote, underseat reservoir |
Adjustability Front | Compression damping, rebound damping and spring preload |
Adjustability Rear | Compression damping, rebound damping and spring preload |
Wheels Front | 88.9 mm x 431.8 mm |
Wheels Rear | 139.7 mm x 431.8 mm |
Brakes Front | ZTL type brake, 6-piston, fixed caliper, 375 mm, single-sided, inside out, stainless steel, floating rotor |
Brakes Rear | 240 mm stainless steel, single piston, floating caliper, fixed rotor |
Tank Capacity (litres) | 14 |
Wheelbase (mm) | 1318 |
Ground Clearance (mm) | 110 |
Rake (degrees) | 21 |
Trail (mm) | 83 |
Chassis | Aluminum frame with Uniplanar powertrain vibration isolation system - Fuel in Frame |
Cubic Capacity (cc) | 984 |
Valves | 2 |
Max Power (bhp) | 83 |
Max Power Peak (rpm) | 7400 |
Torque (ft/lb) | 63 |
Torque Peak (rpm) | 5600 |
Bore (mm) | 88.9 |
Stroke (mm) | 79.38 |
Valve Gear | OHV |
Compression Ratio | 10 |
Valves Per Cylinder | 2 |
Exhaust Layout | Free breathing 2 into 1 collector 0 resistance Air Box, Ram Air Intake |
Cooling | Air cooled |
Fuel Delivery | 45mm downdraft DDFI fuel injection |
Stroke Type | Four Stroke |
Drive | Chain |
Top Speed |
