Bandit9 Supermarine mates weapons grade materials with Triumph power

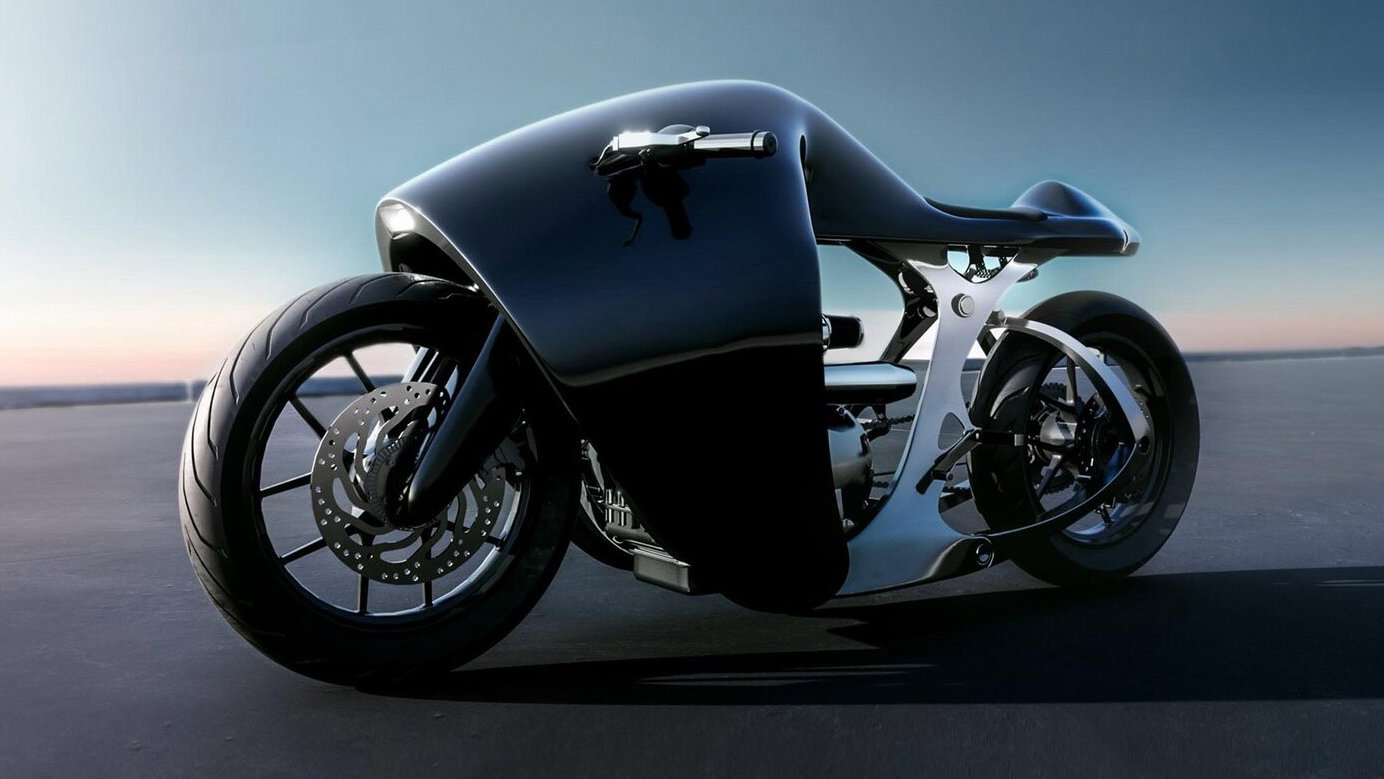

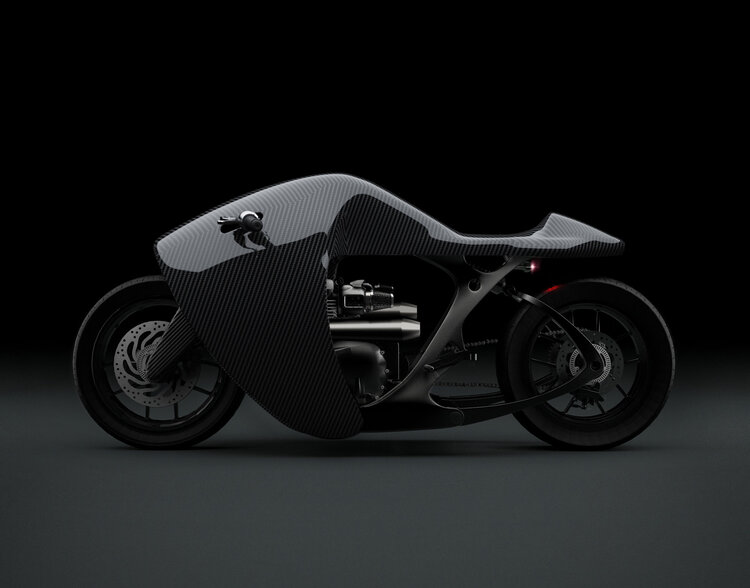

The Bandit9 Supermarine is a hyper-exclusive special, featuring a weapons-grade frame, carbon body, and Triumph 1,200cc engine

Bandit9-Supermarine

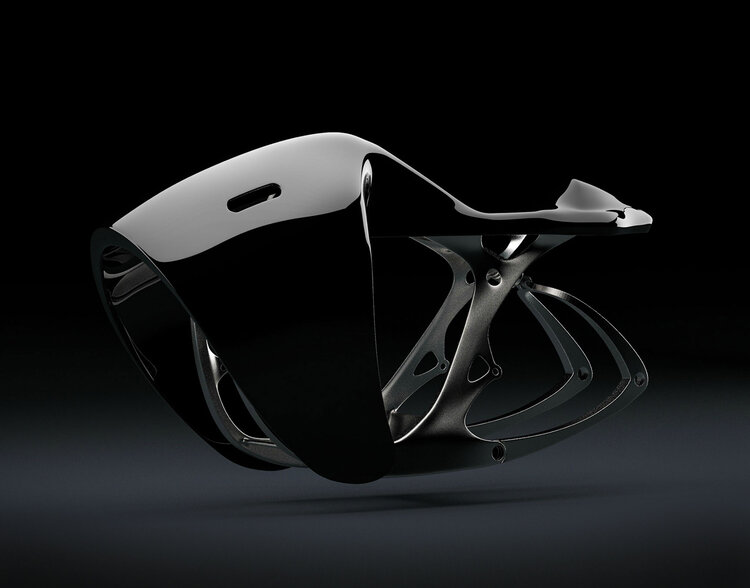

THE brand behind the bike may not be familiar, but the engine at the heart of the Bandit9 Supermarine certainly is. Beneath that manta ray-inspired carbon skin lies a parallel twin-cylinder engine from a Triumph.

2022 Triumph Tiger Sport 660 Specs | All the Features, Price and Details | Visordown.com

The bike can be spec’d with two engines, 900cc (as found in the Street Scrambler) and full fat torque-laden 1,200cc form. Little has been done to the engine for the new Supermarine – presumably because the bike is already ridiculously expensive already – meaning you have a shade over 105bhp to play with, and more torque than a small galaxy.

After the engine, owners can also choose between Stealth and Carbon. Stealth seems to come complete with ‘race-spec' ABS, while carbon wraps the bike in a complete carbon skin for extra… money, I assume.

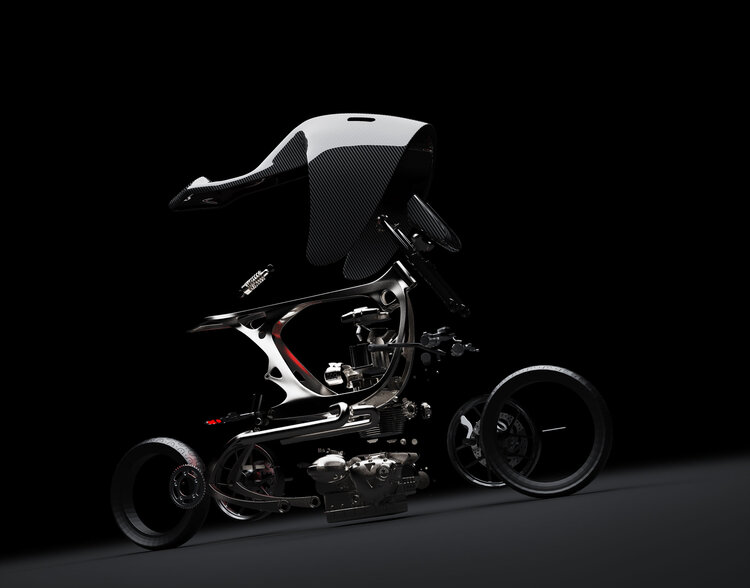

The frame of the bike is a thing of beauty, hewn from 7075 aluminium for strength and durability. Bandit9 is quick to highlight that the special metal is also used in ‘missiles, spacecraft, and other defence applications.

So there we are then.

Bandit9 Supermarine specs

TYPE:
Liquid cooled, 8 valve, SOHC, 270° crank angle parallel twin

CAPACITY:
900cc - 1200cc (Upgraded)

BORE:
84.6 - 97.6mm (Upgraded)

MAX POWER:
74.1 bhp @ 7500 rpm - 102.6 bhp @ 7250 rpm (Upgraded)

MAX TORQUE:
59 ft-lb @ 3800 rpm - 83 ft-lb @ 4250 rpm (Upgraded)

SYSTEM:
Electronic fuel injection

EXHAUST:
2 into 2
Stainless Steel (Standard); Titanium (Upgraded)

DRIVE:
Chain

GEARBOX:
5-speed (Standard); 6-speed (Upgraded)

CHASSIS

FRAME:
7075 Aluminium (Standard); Carbon Fiber (Upgraded)

SWING ARM:
7075 Aluminium monoblock

WHEEL:
Cast aluminium alloy

TYRES:
100/90-18, 150/70 R17

SUSPENSIONS:
Nitron (Standard); Ohlins (Upgraded)

BRAKES:
Brembo 4-piston (Standard), Beringer Aerotec 6-piston (Upgraded)

DISPLAYS:
Custom LED Display

DIMENSIONS

LENGTH x WIDTH x HEIGHT:
2099 x 778 x 1097mm

SEAT HEIGHT:
31.9 in (809 mm)

TANK CAPACITY:
12L

WEIGHT:
216 kg - 190 kg (Upgraded)

FUEL CONSUMPTION:
68.9 mpg (4.1 l/100km)

EMISSIONS:
Euro5

Bandit9: The Supermarine
