OFFICIAL | Triumph Trident, all the specs, features, and details

2021 sees the Triumph Trident taking on the established names in the middle-weight naked and A2 sectors – here’s everything you need to know

Triumph Trident Thumbnail
Triumph Trident Thumbnail

2021 sees the return of a rather iconic name to one manufacturer’s range, as the Triumph Trident returns to the Hinckley factory’s line-up. The name brings with it a new entry point into Triumph triple ownership, and what Triumph hopes will be a new benchmark in the middle-weight naked segment.

The bike features a revised version of the 660cc three-cylinder engine that used to reside in the A2 compatible Street Triple S, although nestling within the Trident’s frame is an engine with significant updates to suit the current application.

Triumph Trident specs, features, and details

In a segment that currently dominated by bikes like the Yamaha MT-07 and Kawasaki Z650, Triumph is hoping that the lure of a sexier three-cylinder engine, and the exhaust note that accompanies it, can put the Trident at the top of new rider’s shopping lists in 2021.

Here are all the specs, features, and details of what could be the most important new bike launched by Triumph in recent years…

Triumph Trident, all the specs, features, and details
Triumph Trident, all the specs, features, and details

Engine specs

  • Liquid-cooled, 12 valve, DOHC, inline 3-cylinder
  • 660 cc
  • 81 PS / 80 bhp (60 kW) @ 10,250 rpm
  • 47 PS / 46 bhp (35 kW) @ 8,750 rpm (A2 restriction)
  • 64 Nm (47 lb-ft) @ 6,250 rpm
  • 59 Nm @ 5,250 rpm (A2 restriction)

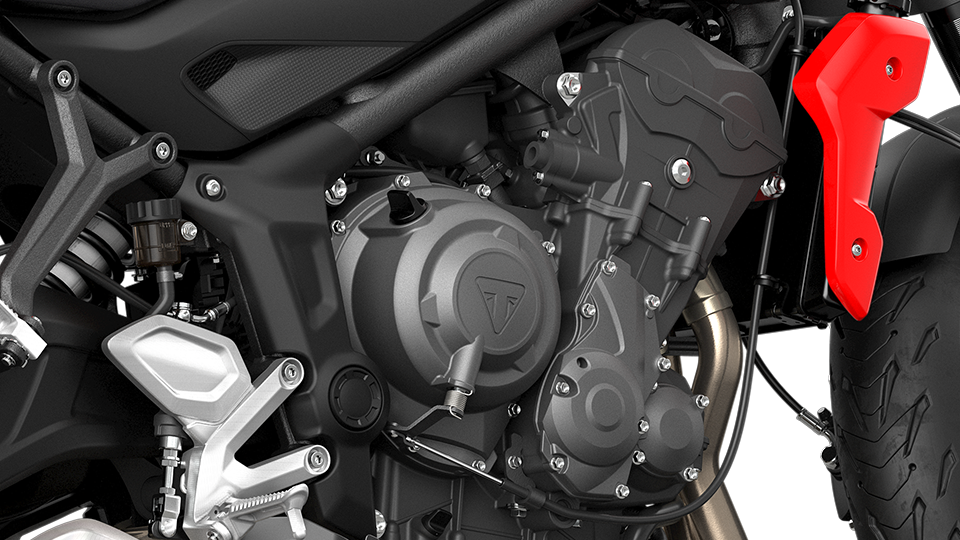

At the heart of the machine is a 660cc liquid-cooled, 12 valve inline three-cylinder engine. As mentioned above the bike is available as an A2 friendly 46bhp version. In its full power version the bike will produce 80bhp and 47lb-ft of torque.

Of the 67 internal changes made to the engine, the main update made to the unit is the adaption to the bore and stroke over the Street Triple S unit it evolved from. The previously peaky engine now produces 90% of its torque from 3,600rpm right the way up to 9,750rpm.

Triumph Trident specs features and details
Triumph Trident specs features and details

The engine is mated to a six-speed gearbox that features an assisted slipper clutch and a quickshifter system available as an aftermarket option. Having sat on the bike at a PR event at the factory last week, I can confirm the clutch is super light, with the adjustable span lever making it comfortable to use for those of us blessed with smaller hands.

Hardware aside, Triumph has worked hard to reduce the post-sale cost of Triumph Trident ownership, with servicing being the most obvious area for refinement. Triumph claims that over three years the Trident should require only 8.3 hours of service time, compared to the 11 and 15.8 hours of the competition.

Triumph Trident specs features and details
Triumph Trident specs features and details

Chassis specs

  • Tubular steel perimeter frame
  • Twin-sided, fabricated steel
  • Showa 41mm upside down separate function forks (SFF)
  • Showa mono-shock RSU, with preload adjustment
  • Nissin two-piston sliding calipers, twin 310mm floating discs, ABS
  • Nissin single-piston sliding caliper, single 255mm disc, ABS

The frame of the Trident is an all-new tubular steel affair. It’s a design that bears no resemblance to any other model in the current Triumph range, although it could easily be adapted for other applications further down the line. The aim of this frame is to provide accessible ergonomics and exciting handling.

Triumph Trident specs features and details
Triumph Trident specs features and details

The suspension is taken care of by Showa with 41mm USD forks which are a refreshing sight on a middle-weight naked. They give the bike an air of class, especially given that most of the other bikes the Triumph must do battle with are shod with lower-spec telescopic items. The rear shock is a Showa unit too, with manual preload adjustment only.

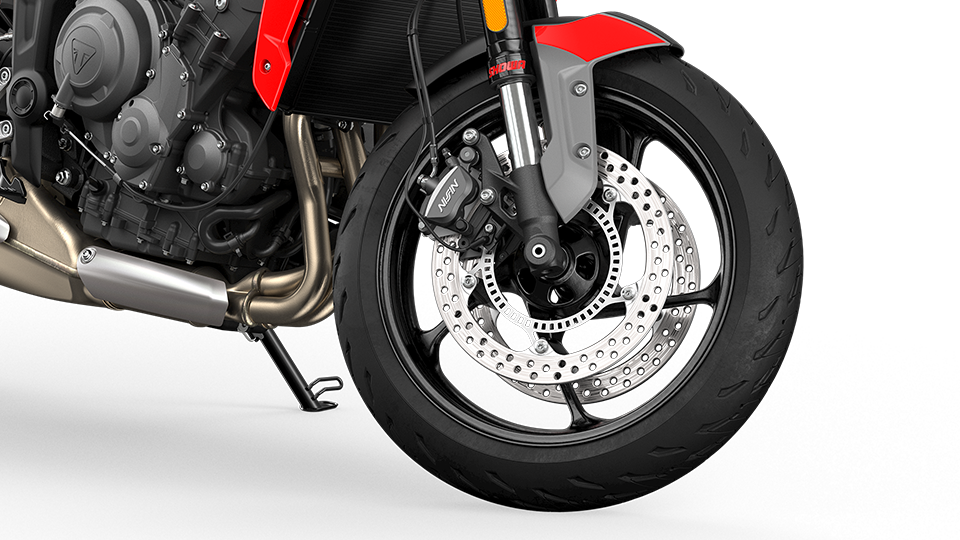

The braking system is supplied by Nissin with two-piston calipers and 310mm discs up front and a single-piston sliding caliper at the rear.

Triumph Trident specs features and details
Triumph Trident specs features and details

ABS is a two-channel set-up with no ability to adjust the level of intervention or to turn the system off. There were some corners of the industry asking for IMU controlled cornering ABS on the bike but in truth, I don’t think it’ll need it. I missed cornering ABS on the top-spec Street Triple RS when riding on road or track!

Triumph Trident specs features and details
Triumph Trident specs features and details

Equipment

  • Two riding modes – Rain and Road
  • Two-channel ABS
  • Optional quickshifter, scrolling LED indicators, Bluetooth connectivity module

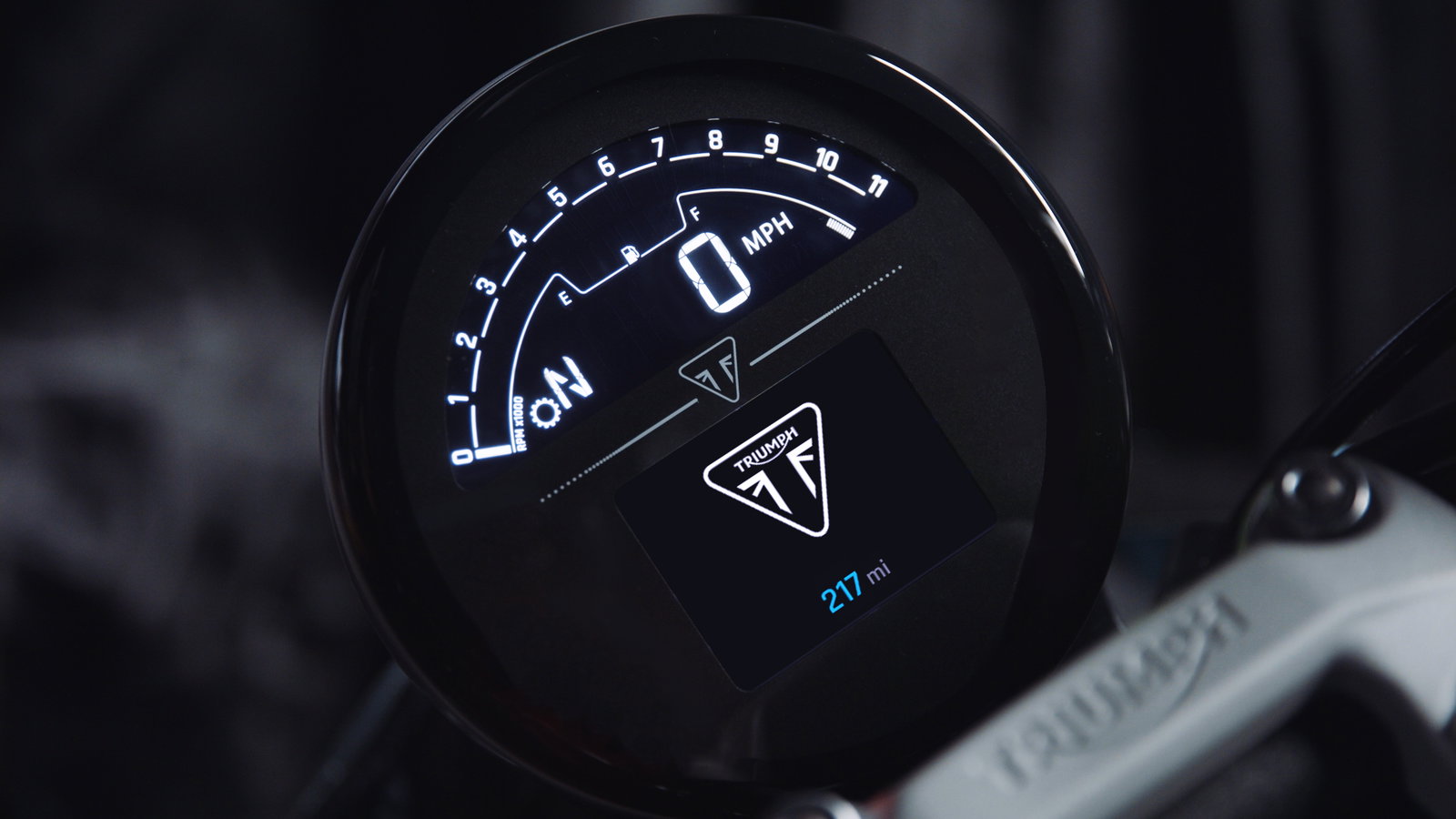

Crowning the cockpit of the Triumph is a stunning looking hybrid TFT screen that features a reverse LCD rev-counter and speedo at the top. Within the TFT the rider can select between Rain and Road modes, each of which adjusts the throttle map and traction control intervention. The traction control can also be adjusted manually or turned off altogether for when the mood takes you. As you’d expect, the Trident features LED lighting throughout, from the headlight to the indicators.

With a host of aftermarket parts on offer, riders will be able to fettle their bikes until their heart is content, with both styling and performance parts on offer.

Triumph Trident specs features and details
Triumph Trident specs features and details

Triumph Trident vs the rivals

So, how does the new challenger from Hinckley shape up against the competition? First off, let's take a look at the bikes it must do battle with - the Yamaha MT-07 (£6,697), Kawasaki Z650 (from £6,649), Suzuki SV650 (£5,649), and the Honda CB650R (£7,199).

So yes, the Triumph is the most expensive of the middle-weight crop of bikes that can be A2 licence compatible. But Triumph will claim compared to the competition it’s a premium product featuring premium kit.

Triumph Trident specs features and details
Triumph Trident specs features and details

It’s not the only bike here with a TFT, the Kawasaki has the clearest and best looking TFT on two-wheels in our opinion, and the other two bikes mentioned above are ready for a makeover which will likely improve some TFT action.

On the hardware front, the Triumph is the only bike that gets proper USD forks, and while that won’t actually make any difference to how the bike handles for most people, it does add to the premium feel of the machine. Is it enough to steal sales from the assembled Japanese forces? Only time will tell.

Bike

Capacity

Power

Torque

Weight

TFT

Seat height

Tank size

Triumph Trident

660cc

80bhp

47lb-ft

189kg

Y

805mm

14l

Yamaha MT-07

689cc

73bhp

50lb-ft

182kg

N

805mm

14l

Kawasaki Z650

649cc

67bhp

47.2lb-ft

188kg

Y

790mm

15l

Suzuki SV650

645cc

75bhp

47lb-ft

197kg

N

785mm

13.8l

Honda CB650R

649cc

93bhp

47lb-ft

202kg

N

810mm

15.4l

Triumph Trident specs features and details
Triumph Trident specs features and details

Colours and pricing

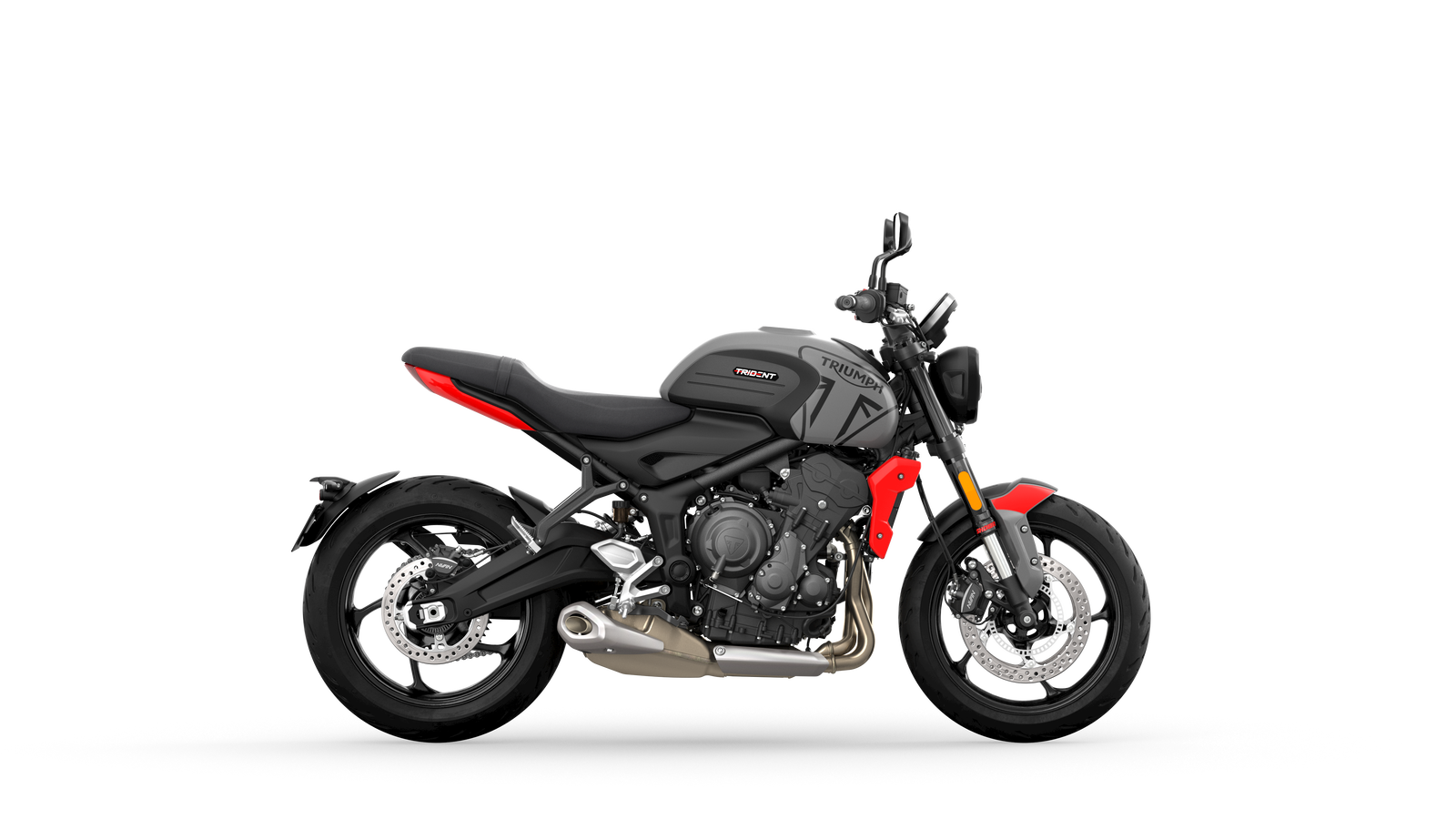

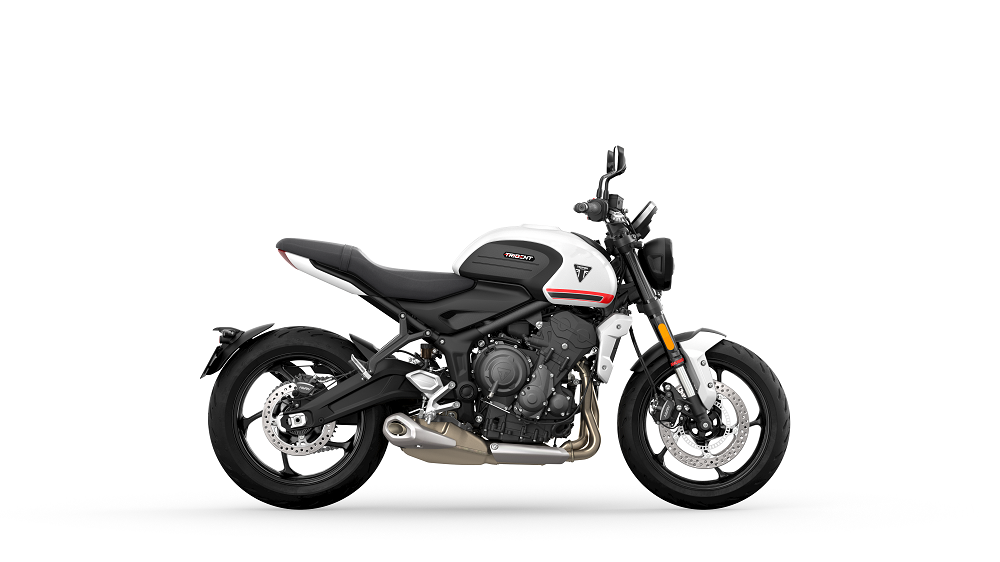

The new 2021 Trident will be available in Silver Ice and Diablo Red, Matt Jet, and Matt Ice Silver, Crystal White, and Sapphire Black.

The bikes should be in dealerships by the end of January and it’ll have a price of £7,195.

Triumph Trident specs features and details
Triumph Trident specs features and details

Triumph Trident specs

ENGINE AND TRANSMISSION

Type

Liquid-cooled, 12 valve, DOHC, inline 3-cylinder

Capacity

660 cc

Bore

74.0 mm

Stroke

51.1 mm

Compression

11.1:1

Maximum Power

81 PS / 80 bhp (60 kW) @ 10,250 rpm

47 PS / 46 bhp (35 kW) @ 8,750 rpm (A2 restriction)

Maximum Torque

64 Nm (47 lbft) @ 6,250 rpm

59 Nm @ 5,250 rpm (A2 restriction)

Fuel System

Multipoint sequential electronic fuel injection with electronic throttle control

Exhaust

Stainless steel 3 into 1 header system with low single sided stainless steel silencer

Final Drive

X-ring chain

Clutch

Wet, multi-plate, slip & assist

Gearbox

6 speed

CHASSIS

Frame

Tubular steel perimeter frame

Swingarm

Twin-sided, fabricated steel

Front Wheel

Cast aluminium, 17 x 3.5 in

Rear Wheel

Cast aluminium, 17 x 5.5 in

Front Tyre

120/70R17

Rear Tyre

180/55R17

Front Suspension

Showa 41mm upside down separate function forks (SFF)

Rear Suspension

Showa monoshock RSU, with preload adjustment

Front Brakes

Nissin two-piston sliding calipers, twin 310mm floating discs, ABS

Rear Brakes

Nissin single-piston sliding caliper, single 255mm disc, ABS

Instruments

Multi-function instruments with colour TFT screen

DIMENSIONS & WEIGHTS

Length

2020 mm (79.5 in)

Width (Handlebars)

795 mm (31.3 in)

Height Without Mirrors

1089 mm (42.9 in)

Seat Height

805 mm (31.7 in)

Wheelbase

1401 mm (55.2 in)

Rake

24.6 °

Trail

107.3 mm (4.22 in)

Wet weight

189 kg (417 lb)

Fuel Tank Capacity

14 litres (3.7 US gal)
