The History of the Honda Africa Twin

Visordown looks at the various Honda Africa Twin dual-sport adventure motorcycle models produced throughout history; From 1988 to present.

The dual-sport Honda CRF1000L Africa Twin, as we know it today, has a rich and diverse history spanning over thirty years. Throughout this time, the Africa Twin (or AT) can be split into three distinct models, each with differing engine capacities.

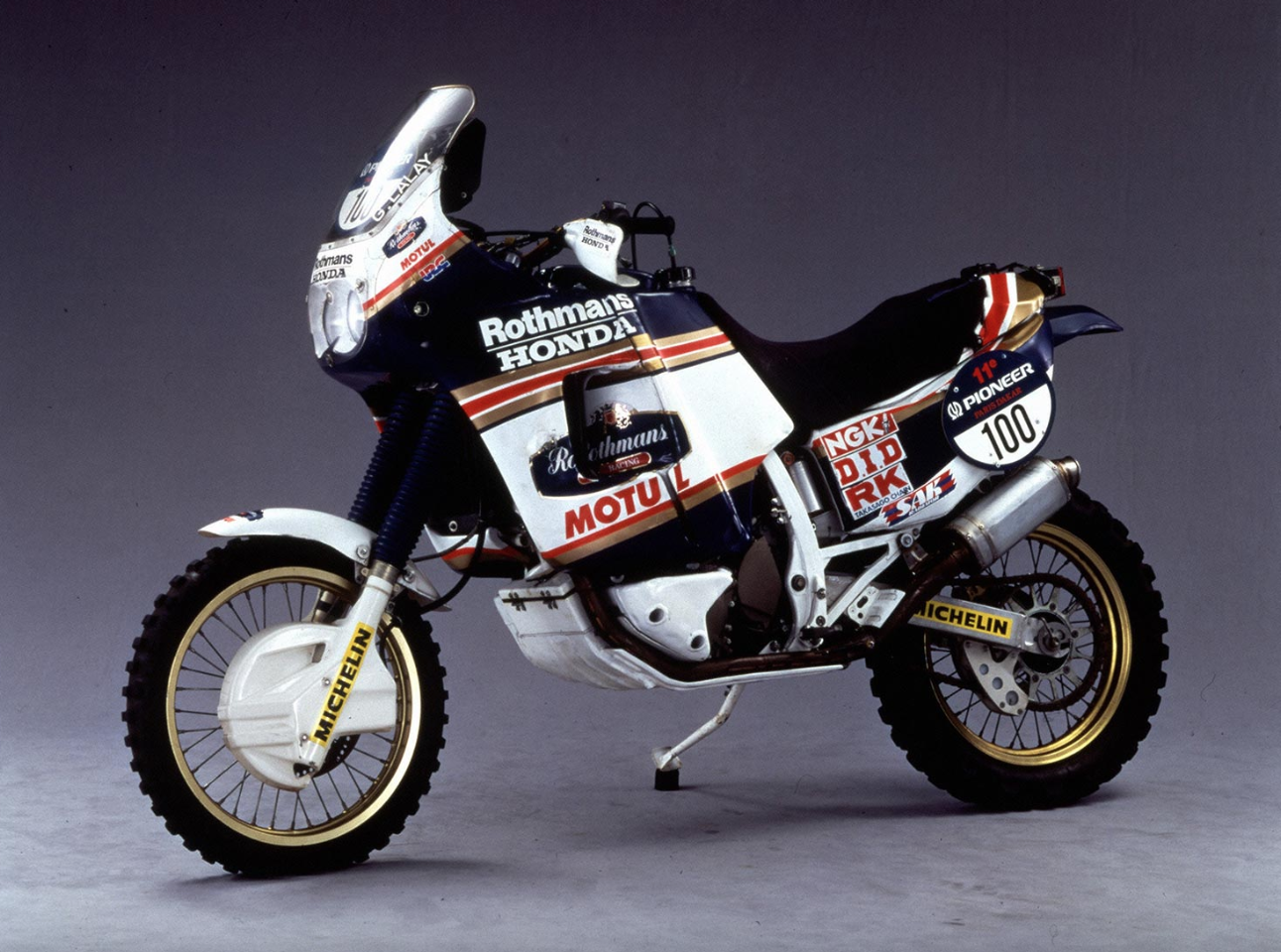

The first ‘true’ Africa twin came about in 1988 to 1989 as the 650cc V-twin XRV650; then from 1990 to 2003 as the 750cc V-twin XRV750T; and then from 2016 to present as the 1,000cc parallel-twin CRF1000L. The first road-going 1988 Africa Twin was a replica of the Dakar winning 1986 NXR750 (see below), which won the Dakar a total of four times.

Let’s have a look at how the Africa Twin has evolved over time, finishing up on what we expect from the 2020 model...

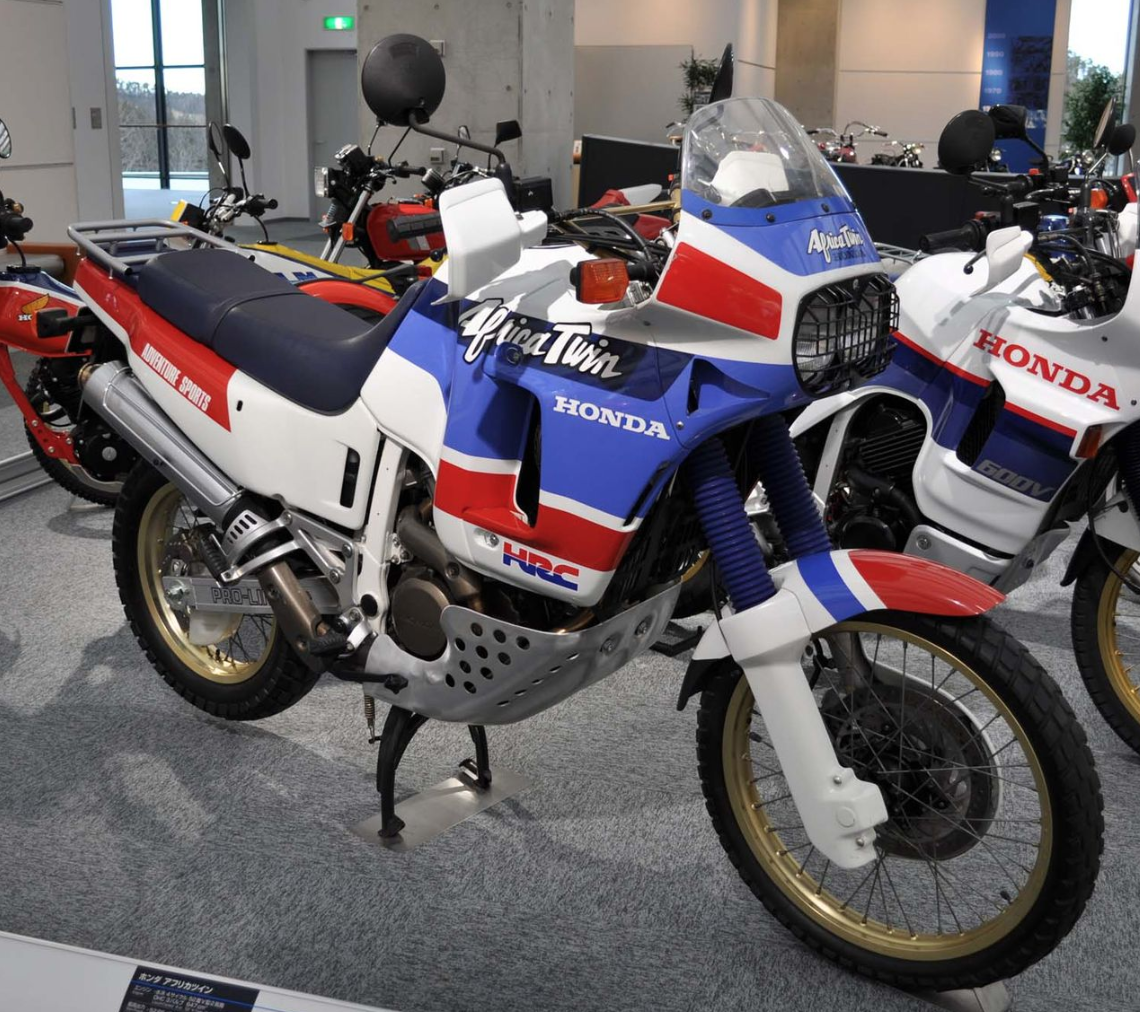

Honda XRV650 Africa Twin (RD-03): 1988 to 1989

Built off the popularity of the Paris-Dakar Rally, the XRV650 (RD-03) was launched on the 20th May 1988. Its conception caused somewhat of a sensation, and the model's success would spawn new derivatives right up until the present day.

Tomonon Mogi, the chief designer, wanted the AT to be as close to the factory racing NXR as possible. To this effect, it had a mesh headlight guard; twin aluminium radiators; stainless steel exhaust; ‘auxiliary type’ modular instrument panel; stone guard; quick-release fairly clips; and the HRC ‘tricolore’ colour scheme (as it was built the HRC factory). Creation of huge side-saddle fuel tank almost halted the project because the tank was lower than the carbs and required the use of a fuel pump.  Honda also had to incorporate completely new manufacturing techniques to fabricate it - requiring four sheets of steel instead of the conventional three.



XRV650 Honda Africa Twin Quick Specs

Engine

647cc liquid-cooled 52° V-twin

Bore x Stroke

79 x 66mm

Power

57bhp @ 8000rpm

Suspension

(F) 43mm Showa fork, 230mm travel; (R) Pro-Link monoshock, 210mm travel

Seat height

880mm

Dry weight

185kg

Fuel capacity

25 litres

This model wasn't officially exported to the UK, but its successor, the RD-04, was.

Honda XRV750T Africa Twin (RD-04): 1990 to 2003

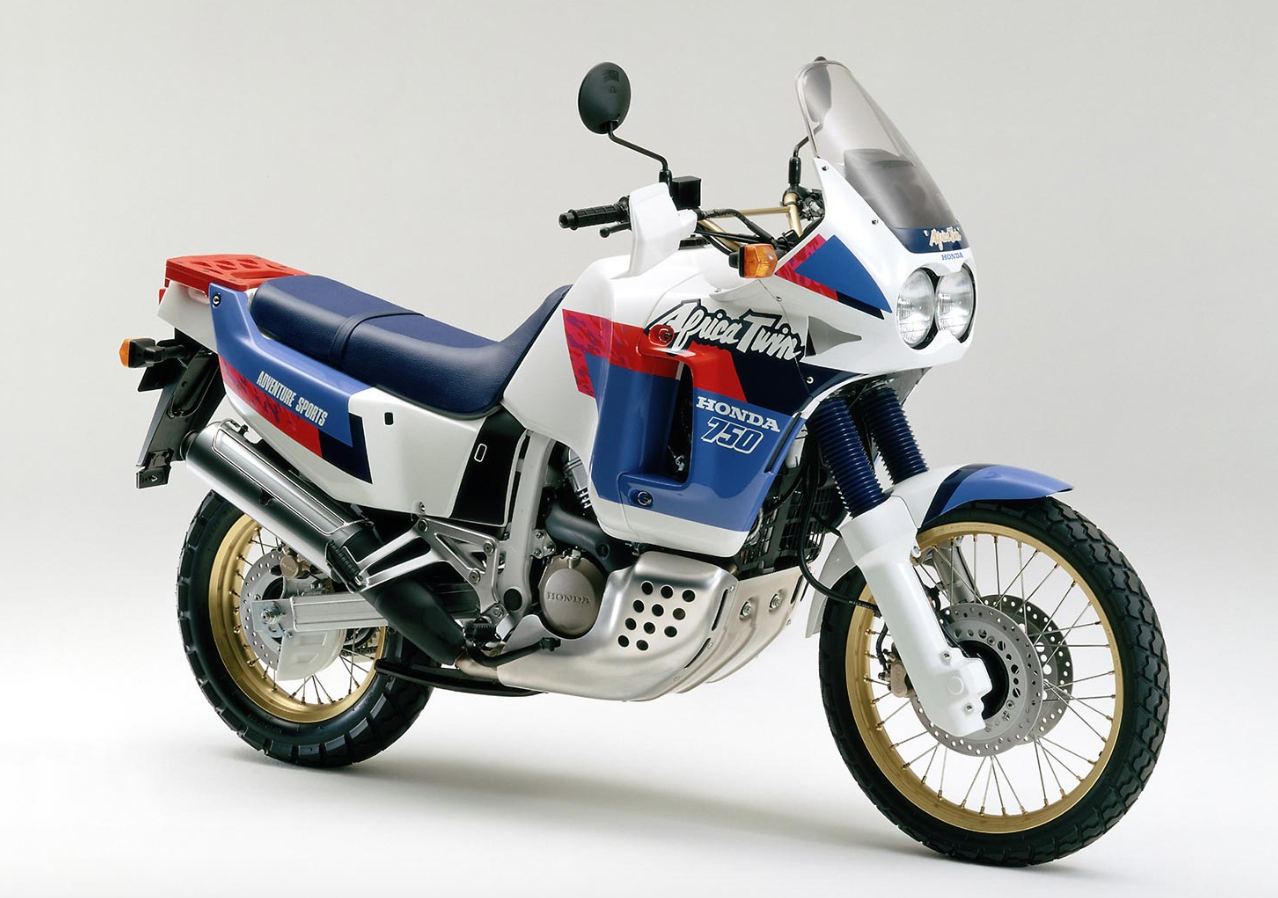

XRV750 L-N Honda Africa (RD-04) Twin Quick Specs: 1990 - 1992

Engine

742cc liquid-cooled 52° V-twin

Bore x Stroke

81 x 72mm

Power

62bhp @ 7500rpm

Suspension

(F) 43mm Showa fork, 220mm travel; (R) Pro-Link monoshock, 214mm travel

Seat height

860mm

Dry weight

207kg

Fuel capacity

23 litres

Although arguably the better bike - due to improved engine performance and better brakes - the 750 was built to a lower spec than the 650. Firstly the 750’s production was no longer at the HRC factory and in general its build quality and finish just wasn’t the same as before. No longer was the Africa Twin a true NXR replica. This wasn’t to say it was a bad motorcycle, merely that its focus had changed, and it had gained a little chubbiness.

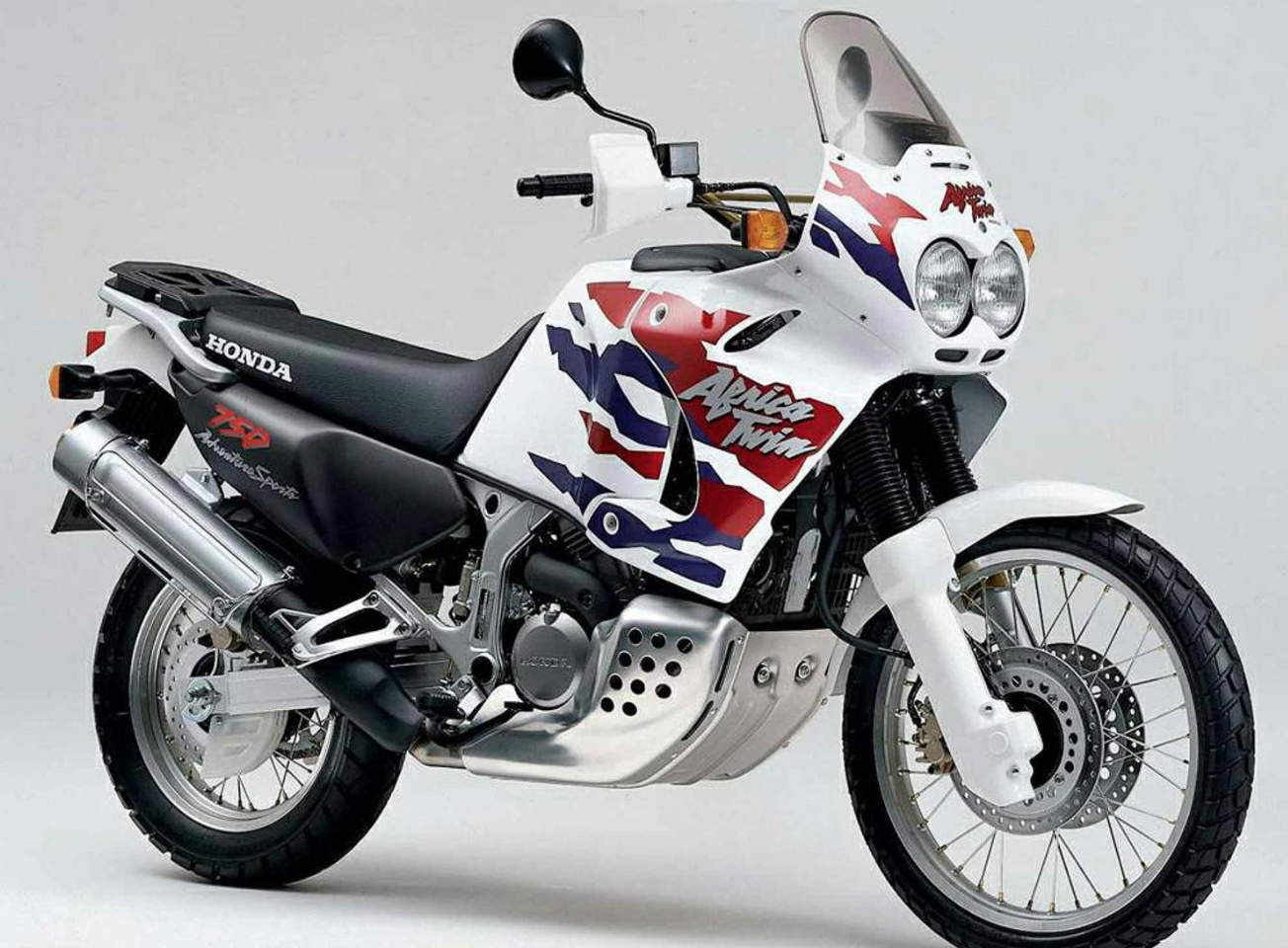

XRV750 P-S Honda Africa Twin (RD-07) Quick Specs: 1993 -1995

Engine

742cc liquid-cooled 52° V-twin

Bore x Stroke

81 x 72mm

Power

62bhp @ 7500rpm

Suspension

(F) 43mm Showa fork, 220mm travel; (R) Pro-Link monoshock, 214mm travel

Seat height

860mm

Dry weight

207kg

Fuel capacity

23 litres

Three years after the RD-04, the RD-07 was released. It featured a new frame and bodywork, lower fuel tank and a lower seat - all in the effort to improve responsiveness.

With some smaller changes in 1996 to the front cowl and screen height, the RD-07A would remain the final iteration of the Africa Twin right up until 2003. It was at this time that Honda deleted the model from its range because the 750 AT was simply outgunned by its larger and more powerful competition.

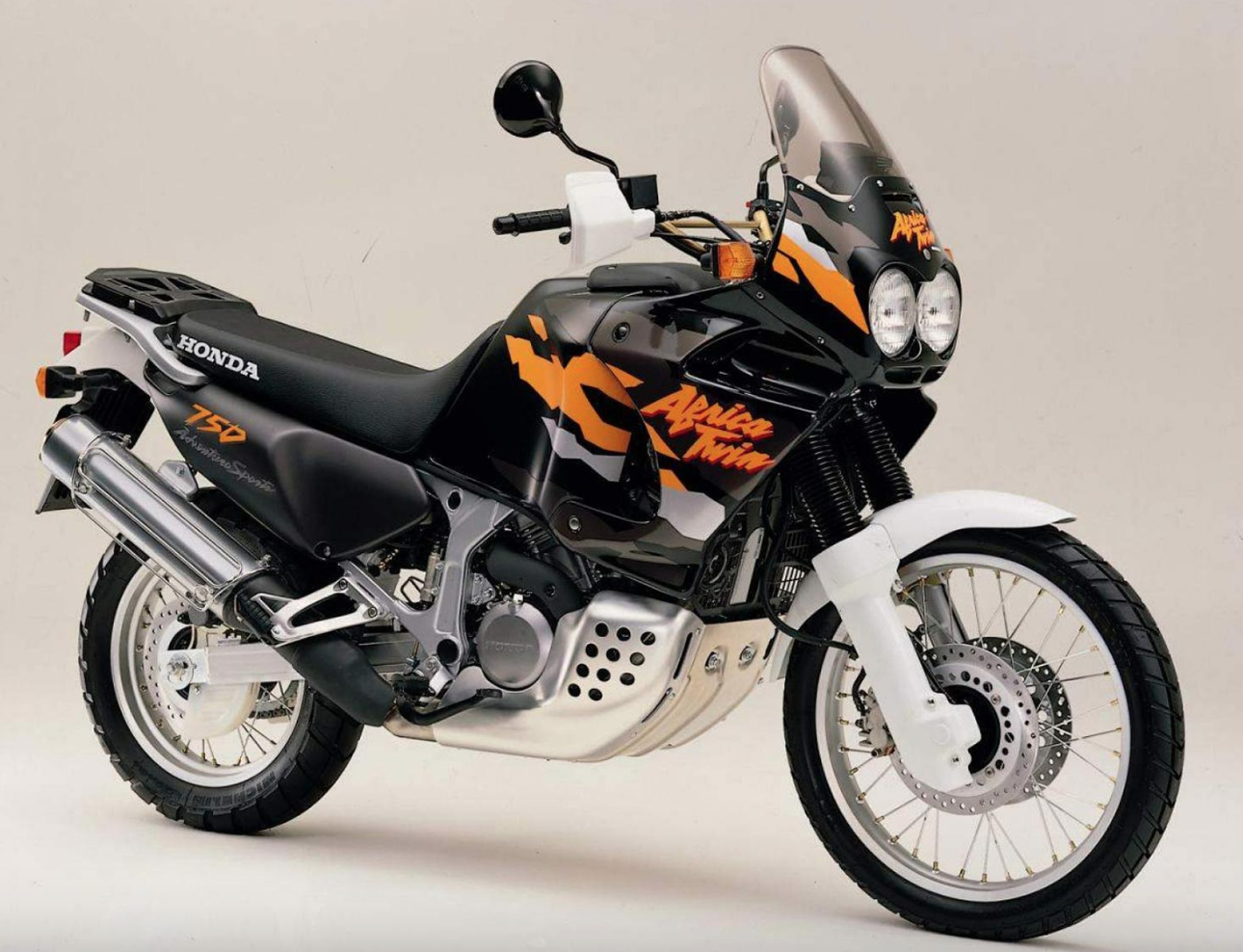

XRV750T Honda Africa Twin (RD-07A) Quick Specs: 1996 - 2003

Engine

742cc liquid-cooled 52° V-twin

Bore x Stroke

81 x 72mm

Power

62bhp @ 7500rpm

Suspension

(F) 43mm Showa fork, 220mm travel; (R) Pro-Link monoshock, 214mm travel

Seat height

860mm

Dry weight

207kg

Fuel capacity

23 litres

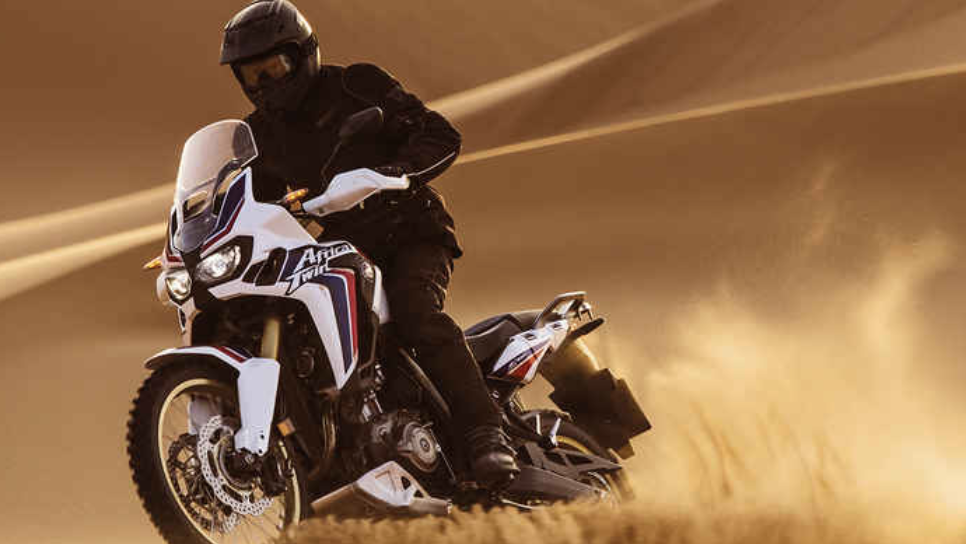

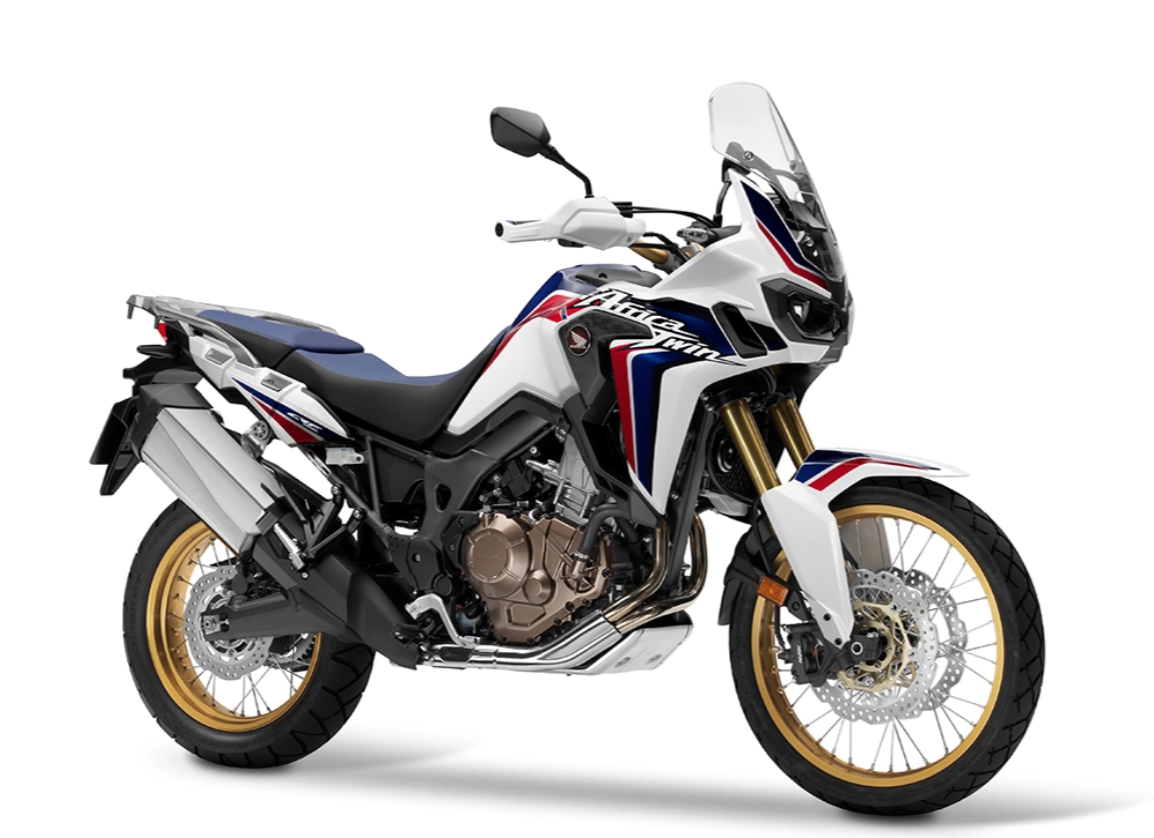

Honda CRF1000L: 2016 to present

Not one to be outdone, Honda brought back the Africa Twin in 2016. Called the CRF1000L and sporting an all-new 998 cc 270° crank, parallel-twin engine, it was an entirely new motorcycle from the wheels up.

The CRF1000L was Honda’s answer to the BMW GS1200, Ducati Multistrada, and Triumph Tiger, and it focused on balancing lightness and power - just like the machines of old.

However, unlike the machines of old, the new AT featured both manual clutch, and dual clutch transmission variants (DCT).

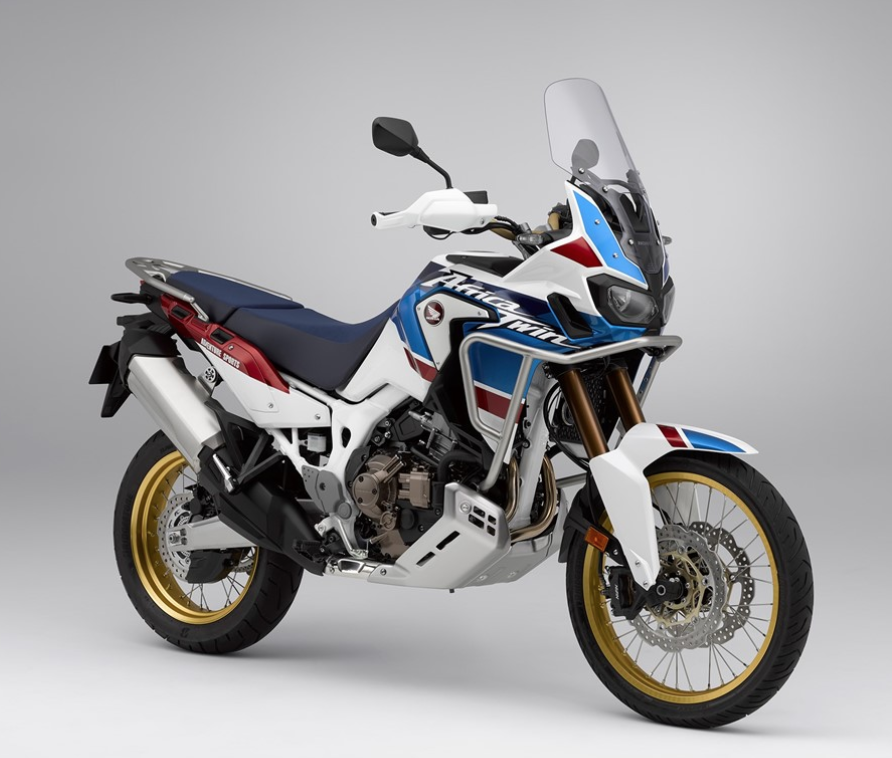

In 2018 the model was upgraded to feature 3 new riding modes, throttle by wire control, improved intake and exhaust tuning, and more Honda Selectable Torque Control (HSTC) options. During this time, Honda also released a beefed-up Adventure Sports model (see below), which had the same updates, plus: Improved wind protection, greater tank range and longer suspension travel - improving off-road capabilities.

Modern features include:

  • Rally style LCD dash

  • A full LED light suite

  • Switchable ABS (on/off)

  • 7 levels of Honda Selectable Torque Control (HSTC) + engine braking control

  • Fireblade inspired camshaft design

  • Adjustable seat height (by 20mm)



CRF1000L Honda Africa Twin Quick Specs 2016 - present

Engine

998 4-stroke 8-valve Parallel Twin with 270° crank and uni-cam

Bore x Stroke

92 x 75.1mm

Power

94bhp @7,500rpm

Suspension

    Front: Showa 45mm cartridge-type, 230mm stroke

Rear: Pro-Link with gas-charged damper, 220 mm travel

Seat height

280 - 250mm

Dry weight

208kg std, 212kg ABS, 222kg DCT

Fuel capacity

18.8 litres

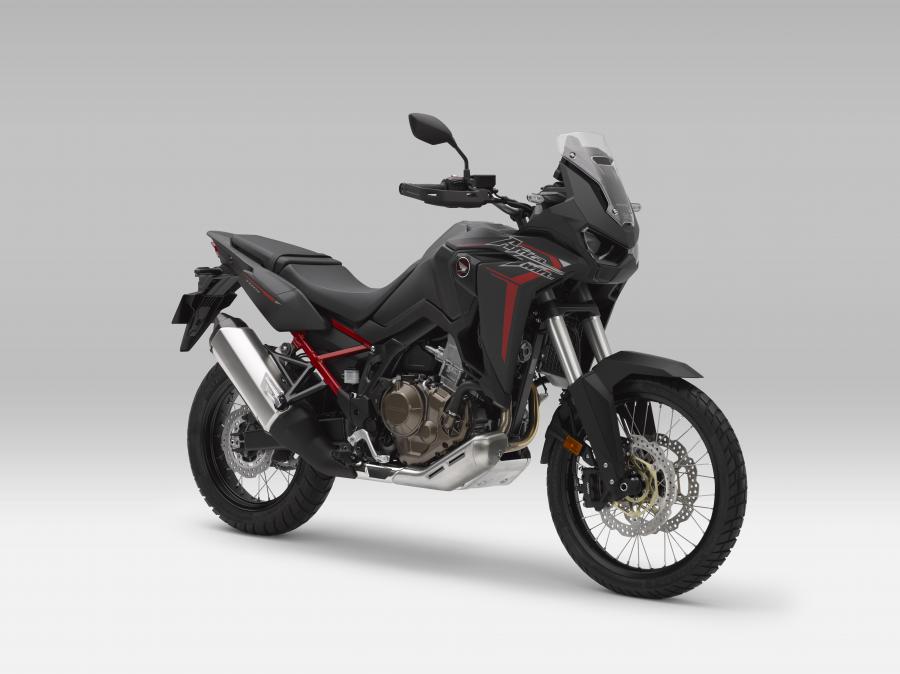

2020 Honda CRF1100L Africa Twin

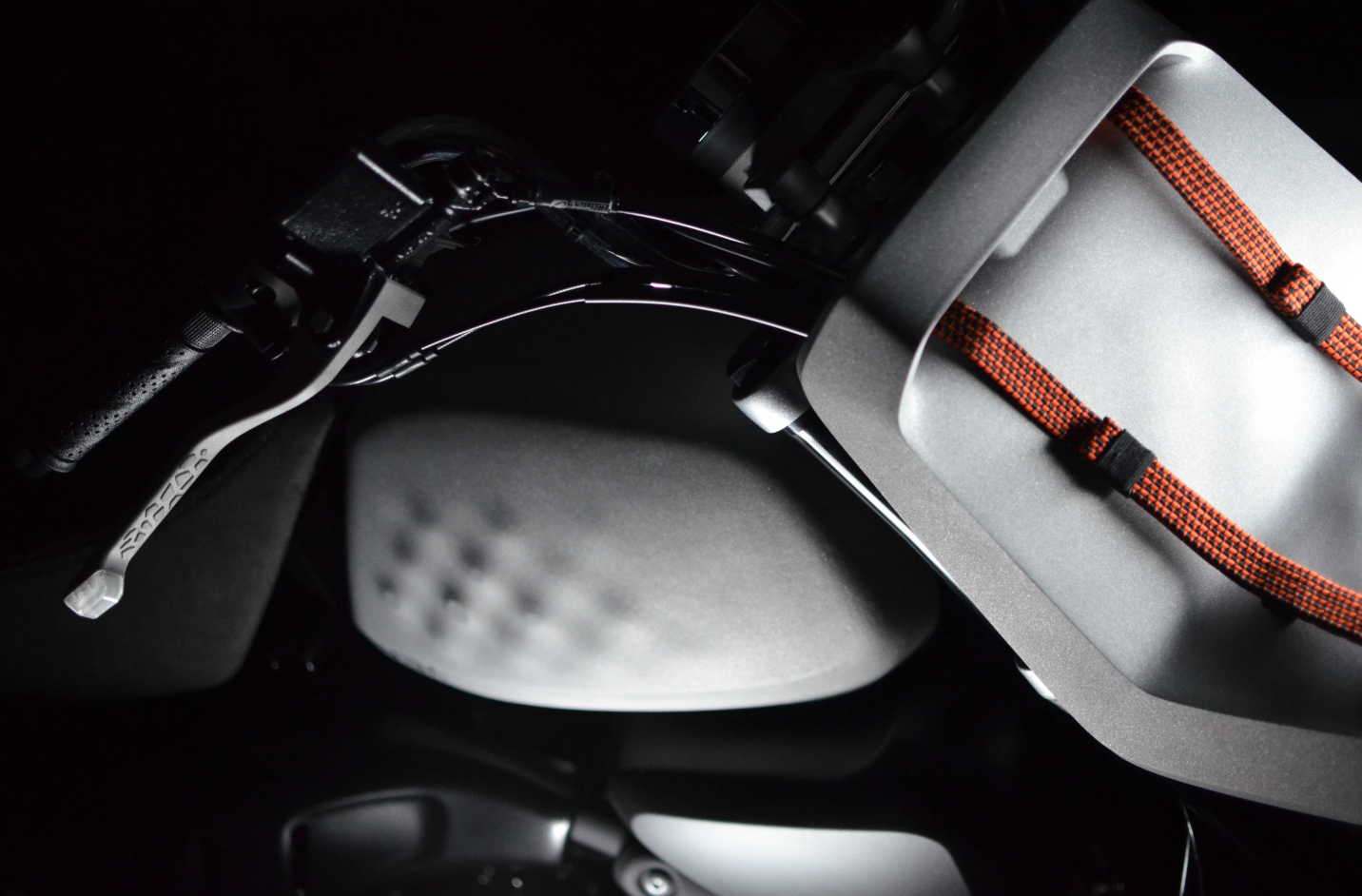

A little while back Honda released this teaser (see below), but recently new details have emerged and been confirmed by Honda.

The 998cc parallel-twin motor has been redesigned, and in its place sits a 1084cc unit which kicks out 101bhp and 105Nm of torque. The new bike is slimmer and lighter thanks to a new frame, subframe and CRF450 inspired swing arm design.

Like its predecessor, the standard 2020 Africa Twin comes in manual and DTC variants. The more off-road-focused Adventure sport model is also still available.

The 2020 CRF1100L is packed with tech and includes a six-axis IMU, TFT touch screen, Apple CarPlay and Bluetooth Connectivity. It has four default riding modes which include; Off-road, tour, urban and gravel; two customisable user modes; and three levels of wheelie control.

For more information about the Standard CRF1100L and CRF1100L Adventure Sports click the links.

Honda CRF1100L Africa Twin Quick Specs 2020

Engine


SOHC liquid-cooled 4-stroke 8-valve parallel twin with 270° crank and Uni-cam

Bore x Stroke

92mm x 81.5mm

Power

101bhp @7,500rpm

Suspension


Front: Showa 45mm cartridge-type inverted telescopic fork with dial-style preload adjuster and DF adjustments, 230mm stroke

Rear: Pro-Link with Showa gas-charged damper, hydraulic dial-style preload adjuster and rebound damping adjustments, 220 mm rear wheel travel

Seat height

850/870mm (low seat option 825mm, high seat option 895mm)

Dry weight

226kg (DCT 236kg)

Fuel capacity

18.8 litres
