ABM reveal bespoke Triumph 765 powered GP2 racebike

During the British Superbike round at Oulton Park, a Triumph 765 powered, carbon-laden GP2 motorcycle was revealed by ABM.

ABM Gp2 triumph 765 racebike

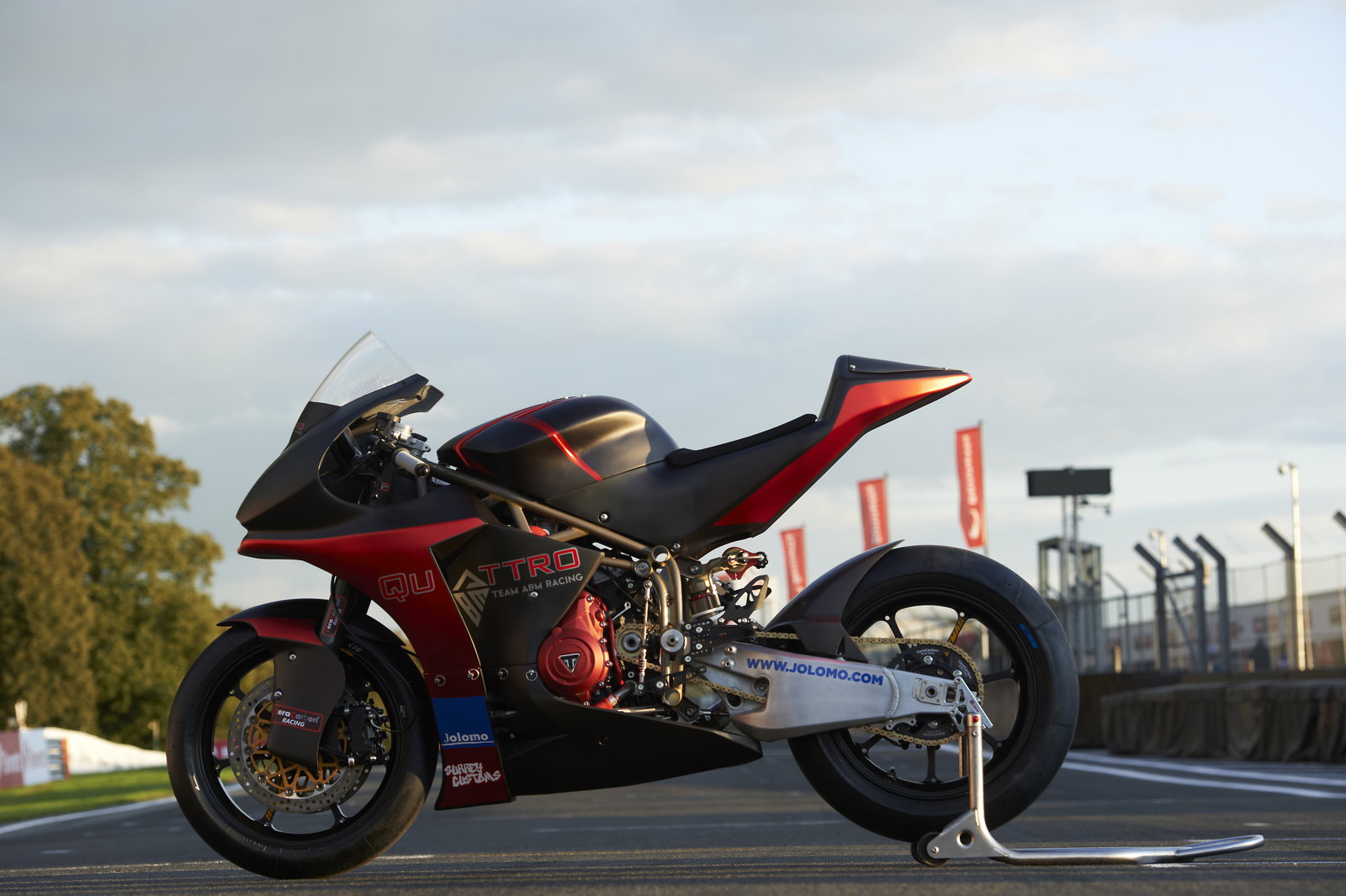

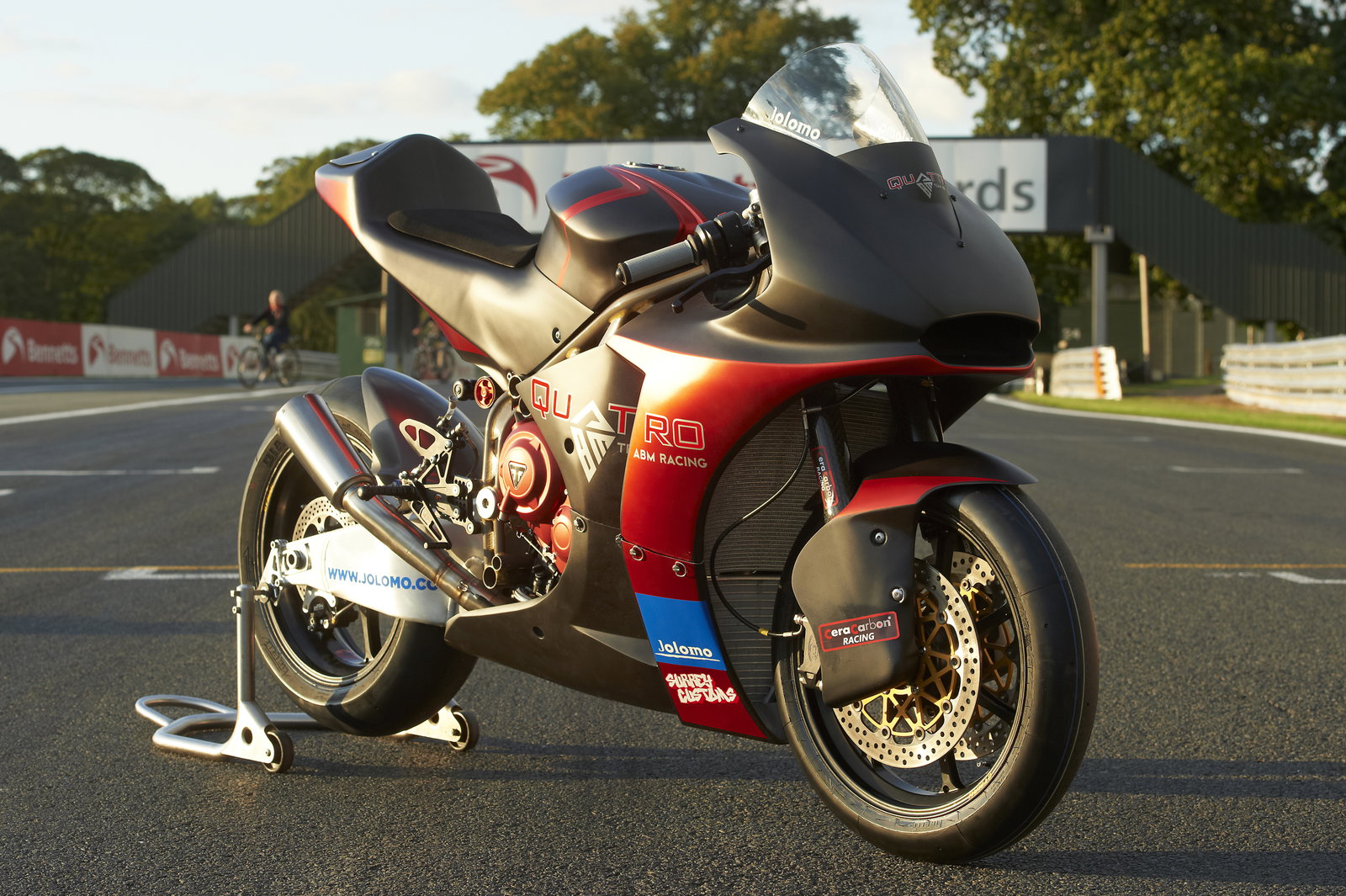

The British designed 765cc ABM GP2 motorcycle is the first of its kind outside of the Moto2 paddock, and it features a whole host of high-end carbon fibre products, including front forks and a rear sprocket.

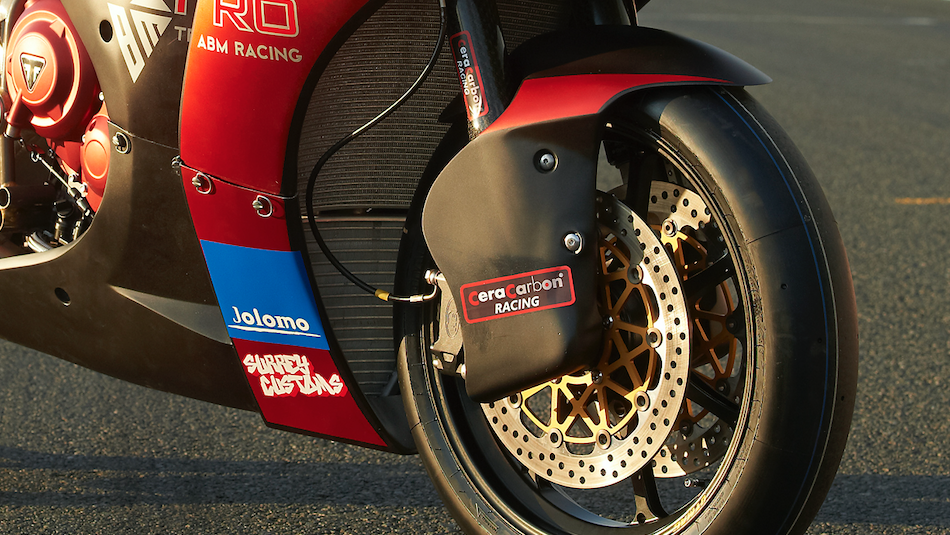

ABM has enjoyed many successes this year, with Mason Law scoring two victories and eight podiums in the British GP2 championship. The new 765 powered three-cylinder machine hopes to build on these successes in the future. In order to help make that happen, the bike has and bespoke trellis chassis, full carbon/ceramic front forks and a carbon and Teflon rear sprocket - developed by Mason and the ABM Quattro Racing team in conjunction with their composites partner CeraCarbon.

However, with current class classifications, the new motorcycle will not be legal to race, but GP2 Championship organisers are evolving their regulations to potentially accommodate the new machine - this will include the fitment of a mandated ECU and airbox restrictors.

Fortunately, you’ll still be able to hear the ABM 765 howl at the remaining GP2/British Superstock rounds, as it’ll be allowed to participate in free practice for open evaluation.

Here’s what ABM owner Tony Scott had to say:

“This is a unique machine and follows our long-standing desire for a prototype GP2 class in UK racing - something that we spearheaded back in 2017 with our development bike ridden by Alastair Seeley. We’ve continued that this season with Mason Law and as this class has grown and developed, we’ve developed our plan to sell competitive, cost-effective machines to the privateer GP2 paddock. This project also helps showcase the ABM brand and I’m grateful to the BSB organisers for giving the machine time and consideration and allowing us to pitch it against the existing GP2 machines.”

With the level of bespoke manufacturing going on and all use of such high-grade parts, the prices are not likely to be your average road bike fare, and are only available on request from ABM.

For those looking to bling up their existing machine – either 675 Daytona or their carbon clad Moto2 765 Moto2 Daytona, ABM are selling fairing kits that are a straight swap for the factory ones. A fibreglass full set covering top and bottom fairings, screen, air intake, seat unit and clock mounting kits comes in at £850 inc vat. A full carbon fibre set of the same would cost £2500.

For more information, head to: www.t3-racing.co.uk

ABM GP2 specs

ENGINE & TRANSMISSION

Type

 Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder

Capacity

 765cc

Bore

 78mm

Stroke

 53.38mm

Compression

 12.9;1

Max Power

 128 BHP@ Rear Wheel @ 12,250rpm

Max Torque EC

 60 ftlb@ 9,250rpm

System

 Multipoint sequential electronic fuel injection

Exhaust

 Full Titanium system at 53mm bore

Final Drive

 X 428 ring chain

Clutch

 Wet, multi-plate slip assist clutch with electronic engine braking control.

Gearbox

 6-speed

CHASISS

Frame

 Chrome Moly tubular/elliptical  chassis (Bronze Welded.

Swingarm

 Twin spar underslung with quick release adjusters.

Front Wheel

 Cast Aluminium Multi Spoke 17 x 3.5 in

Rear Wheel

 Cast Aluminium Multi Spoke 17 x 5.5 in

Front Tyre

 Pirelli Slick 120/17.5

Rear Tyre

 Pirelli Slick 180/17.5

Front Suspension

 Carbon Fibre Forks with a Carbon and Ceramic Stanchion. 750mm with 30mm Gas Cartridge with adjustable preload, rebound and compression damping

Rear Suspension

 TBA

Front Brakes

 EBC VEE Series Twin 320 mm floating discs, HEL 4-piston Monobloc radial calipers

Rear Brakes

 EBC VEE Series Single 255 mm disc, 2-piston sliding caliper

Instrument Display & Functions

 Options; AIM MXS Digital Full-colour with logging.

DIMENSIONS & WEIGHT

Confidetial
