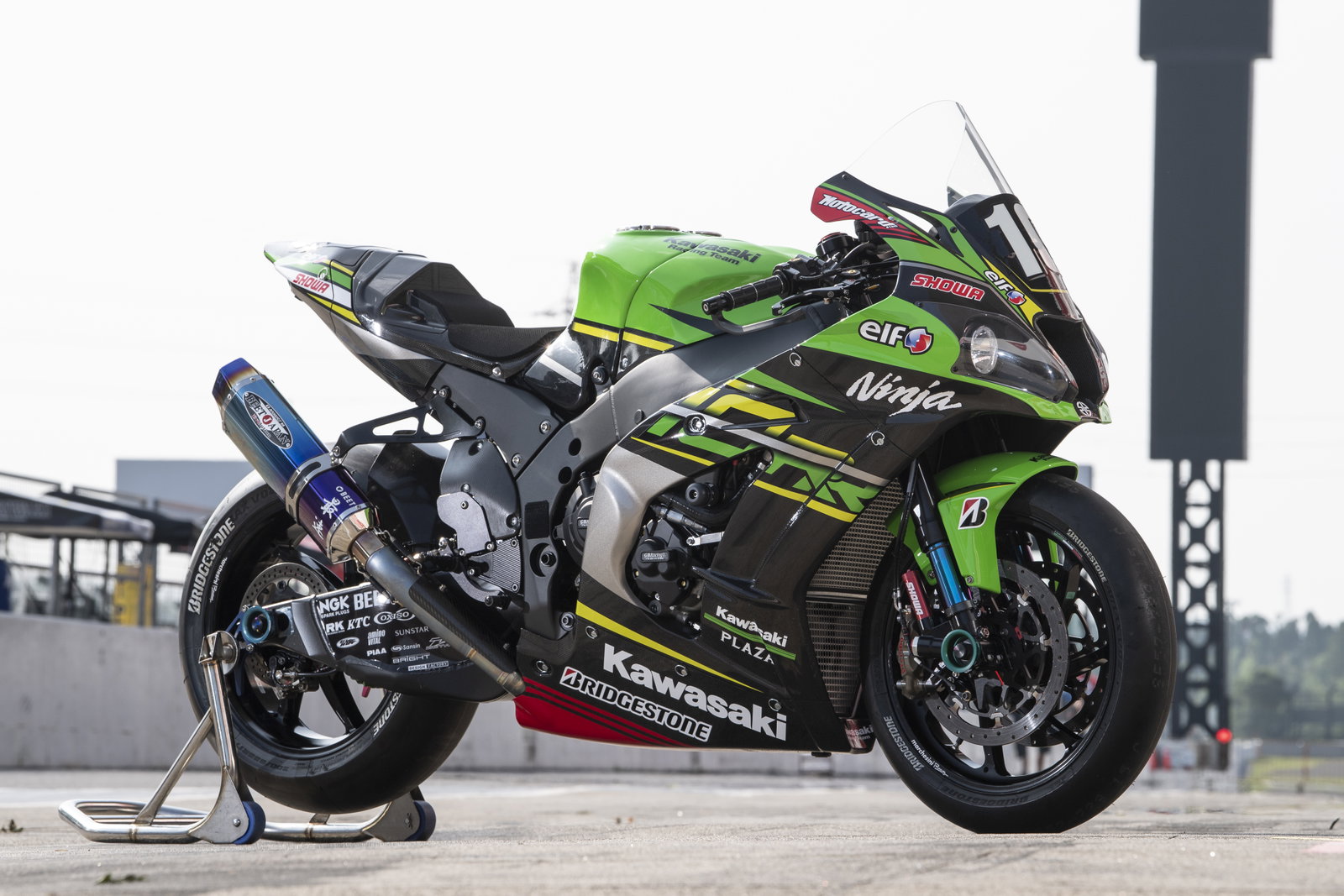

As the clock ticks down to the start of the 2019 race weekend, technical staff from the official Kawasaki Racing Team Suzuka 8 Hours entry are making their final preparations. But the process of building a full-competitive Ninja ZX-10RR for this highly specialised racing category began long ago. Here we outline the changes and technical differences between an official WorldSBK KRT machine and the official KRT Suzuka 8 Hours entry that is being ridden by Jonathan Rea, Leon Haslam, and Toprak Razgatlioglu.

Remote video URL

The highly prestigious Suzuka 8 Hours FIM Endurance World Championship race has always been thought about in two ways. It is either the longest sprint race in the world, or the most intense endurance race imaginable.

In reality, both of those seemingly opposite ideas are correct, which means potential winners have to make their most potent machine race at full pace for the entire eight hours, in some of the most punishing conditions imaginable.

Fundamentally, WorldSBK and EWC share many technical regulations, but there have to be some changes made by regulation, and some to allow for a quick turnaround in the pitlane at each fuel stop.

The engine spec of the Rea/Haslam/Razgatlioglu machine at the Suzuka 8 Hours is more or less the same as the KRT WorldSBK machine, even in terms of the major engine parts and components. An engine in any modern Superbike cannot be thought of as a stand-alone unit, as what really controls its potential performance is ‘mapping’ – the relationship between ignition and how much fuel and air the engine is given at any one point in the rev-range.

What does it take to build a Suzuki 8-hour racer?



In general, the leaner the fuel/air mixture is, the more power it makes and the more aggressive the engine responds to throttle demands. A Suzuka 8 Hours spec machine can make the same outright power as the WorldSBK bike, but whether it does so in any one session is down to how the mapping is set-up. And this depends on the team’s overall race strategy, which is arrived at after practice and qualifying data has been examined. And, to nobody’s surprise, that is confidential information right now - and possibly forever!

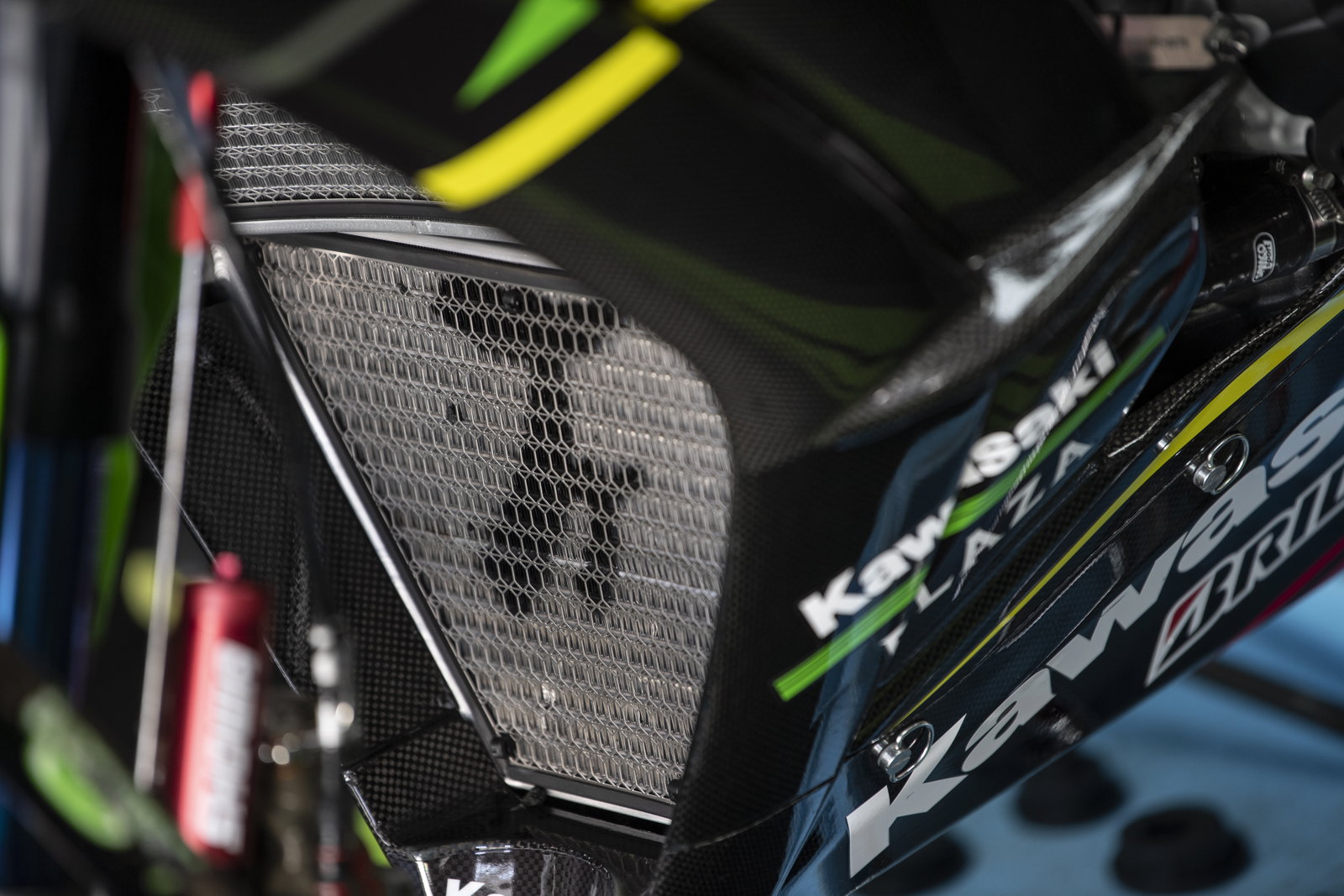

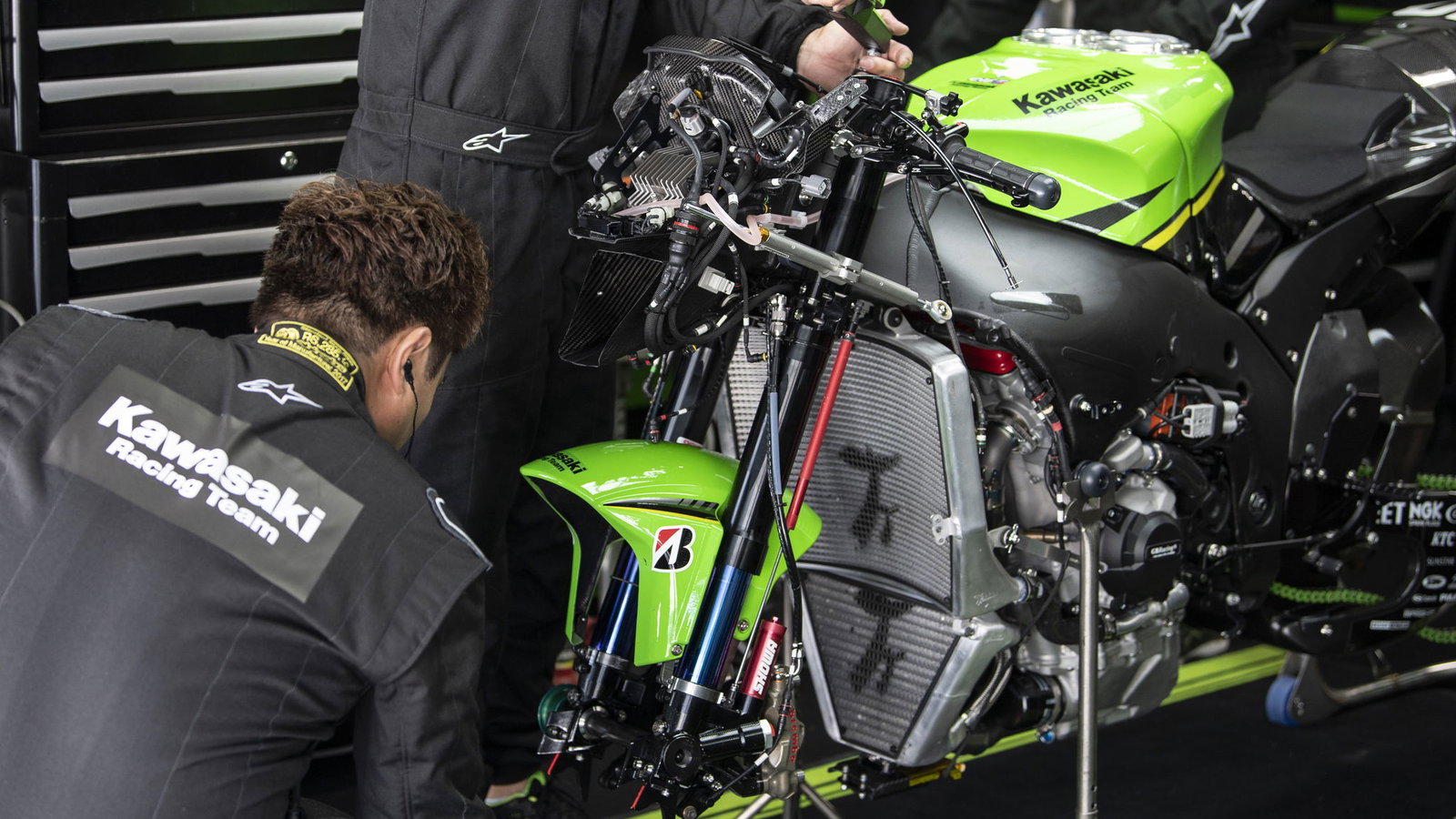

It may surprise some people that despite the race taking place in ambient temperatures often well into the high 30°C range, the WorldSBK KRT engine cooling system is so good that no real changes are made. No double radiators, no extra oil coolers - the WorldSBK set-up is refined and capable enough to cope.



One major component difference is in the gearbox itself. EWC technical regulations allow for a ‘free’ gearbox, rather than one pre-defined set of internal rations that the teams must use all season long in WorldSBK. Internal ratios can be altered for Suzuka making the right gearing in each corner exit as much of a performance tool as a powerful engine. Full use is made of this freedom, with all six gears used in the race. First gear is selected three times over each lap of the 5.821km ‘figure eight’ circuit.

What does it take to build a Suzuki 8-hour racer?



Rea and Haslam rode in the Suzuka 8 Hours together last season but this year the much taller Toprak Razgatlioglu joins to complete the trio. As all three will share the same EWC machine this weekend there was the potential for more of a compromise overall riding position decided on for the race than last year. The tall Toprak and shorter Haslam will both need to have a riding position that they can happily race with, and so does Rea, who ranks in the middle of his Suzuka team-mates in terms of his height. This need to make everybody ‘fit’ the same bike every bit as valid a part of the overall technical preparation and bike set-up calculation like any other. So far… Razgatlioglu and all are happy, with the only small issue in ideal the front brake lever angle for Toprak – hardly a ‘workaround’ that should pose any significant issues when the flag drops on Sunday 28 July.

What does it take to build a Suzuki 8-hour racer?



Possibly the biggest WorldSBK-to-Suzuka change for the technical staff – and riders – to engage with is the jump from WorldSBK’s single make Pirelli’s tyres to the Bridgestones that will be used at Suzuka. Their different tyre constructions and characteristics offer up a different load request from the suspension and chassis, but the suspension units, plus the rear suspension link, are the same as those used in WorldSBK.

During the race both tyres will be changed at every stop to maximise performance on track.

What does it take to build a Suzuki 8-hour racer?



But performance in pitlane is often the deciding factor in endurance racing, which brings in some real component changes from the WorldSBK scene – and some much more regular use of some other parts.

Time saved in the pits is just as valuable as time made up on track – the stopwatch does not differentiate.

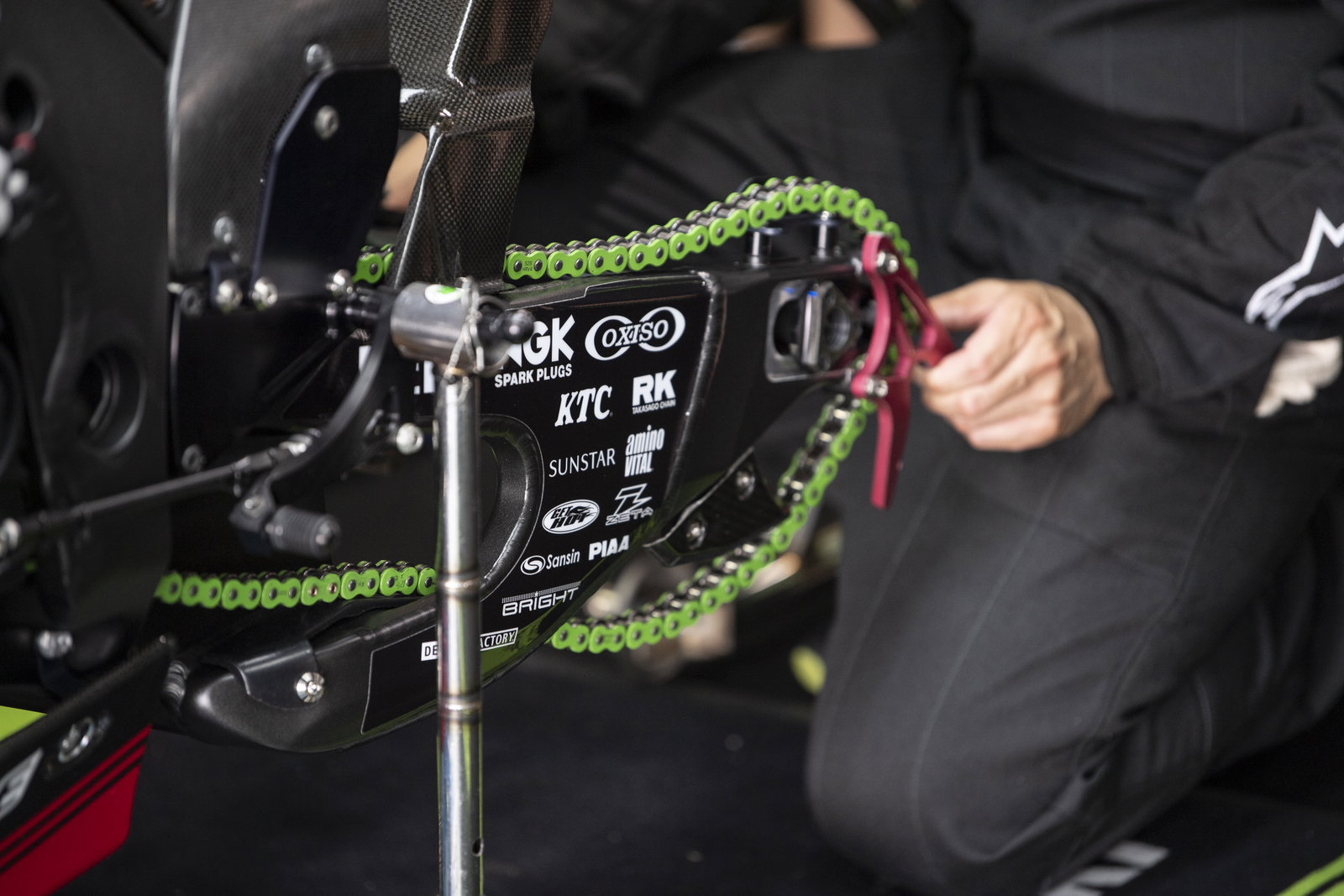

Quickly detachable handlebars, foot pegs, brake lines and quick wheel change systems are all introduced in EWC, to help in pit stop and potential crash damage scenarios.

WorldSBK machines may look like they run headlights but they are just stickers; the Suzuka bike features small but very real Xenon front headlamps and LED taillights. The wiring loom is split into sections to speed up pitlane work, but the ECU location is unchanged.

What does it take to build a Suzuki 8-hour racer?



KRT will run a standard generator and battery, as they do in WorldSBK, as the engine must start ‘on the button’, as it were, at any point in the 8-Hours race.

The fuel tank is taken out to the maximum 24-litre capacity at Suzuka, and fitted with two spring loaded fuel caps, to allow the use of twin hose fillers. Fuel goes into one tank opening through one hose, and when it comes out of the other transparent hose, the tank is completely full.

What does it take to build a Suzuki 8-hour racer?



Even with the race held over eight hours, one complete set of brake pads are used but they are of a harder than usual pad compound, and wider in thickness, to last longer. The brake calipers are also different from WorldSBK, to allow the fitment of those wider pads.

The referenced media source is missing and needs to be re-embedded.



The new-look Kawasaki Racing Team Suzuka 8 Hours set-up is now in the final stages of preparation for the 2019 event, and as this insight into the main areas of tech preparation has shown, nothing is ever left to chance.
