Honda CB500 range prices and specs

For 2019 the CB500 range covers naked, sportsbike and adventure machine – here’s all you need to know

HONDA are launching three bikes this weekend in Tenerife and Visordown are on hand to bring you all the specs, prices and of course the full review.

Here’s what we know so far:

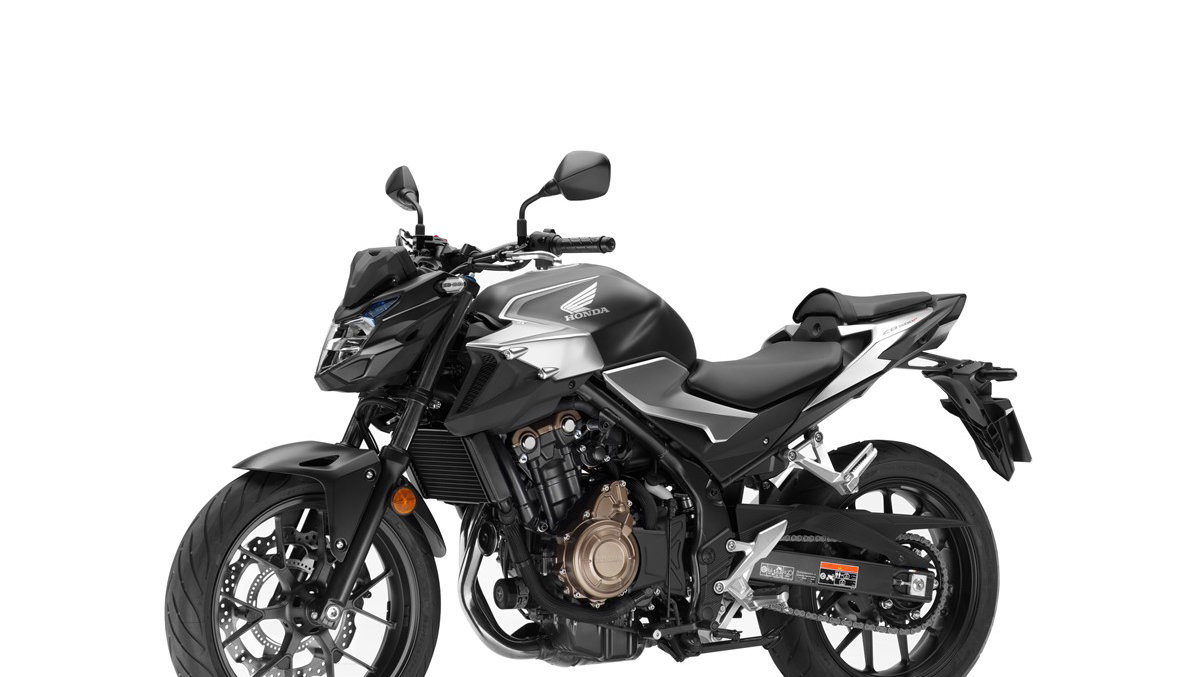

Honda CB500F (2019) Pricing & finance:

  • On the road price: £5,559.
  • Available in dealers now.
  • PCP and HP finance packages are available - see a PCP example below.
ModelCB500F
OTR£5,559
Deposit£1,000.00
Amount of Credit£4,559.00
36 monthly payments£84.30
Final Payment£2,220.20
Total  Payable£6,265.00
APR6.90%
Option to Purchase £10.00
Mileage p/a4,000
 Excess Mileage Charge 3p

Key updates:

  • Lively twin-cylinder power plant’s internal architecture mirrors that of the CBR1000RR Fireblade
  • Revised inlet, exhaust and valve timing delivers 4% more mid-range power and torque
  • Sportier sound from the new dual-exit muffler
  • Assist/Slipper clutch eases upshifts and manages downshifts


Honda CB500F (2019) Spec

ENGINE

Type

Liquid-cooled, parallel twin

Displacement

471cc

Bore & Stroke

67mm x 66.8mm

Compression Ratio

10.7 : 1

Max. Power Output

35kW @ 8600rpm

Max. Torque

43Nm @ 6500rpm

Oil Capacity

3.2L

FUEL SYSTEM

Carburation

PGM FI

Fuel Tank Capacity

17.1L(inc reserve)

Fuel Consumption (WMTC)

29.4km/L

ELECTRICAL SYSTEM

Starter

Motor

Battery Capacity

12V 7.4AH

ACG Output

23.4A/2000rpm

DRIVETRAIN

Clutch Type

Wet multiplate

Transmission Type

6 speed

Final Drive

Chain

FRAME

Type

Steel diamond

CHASSIS

Dimensions (L´W´H)

2080mm x 790mm x 1060mm

Wheelbase

1410mm

Caster Angle

25.5 degrees

Trail

102mm

Seat Height

785mm

Ground Clearance

145mm

Kerb Weight

189kg

SUSPENSION

Type Front

Conventional telescopic front forks, 41mm, pre-load adjustable

Type Rear

Prolink mono with 5-stage preload adjuster, steel square pipe swingarm

WHEELS

Type Front

Multi-spoke cast aluminium

Type Rear

Multi-spoke cast aluminium

Rim Size Front

17 x MT3.5

Rim Size Rear

17 x MT4.5

Tyres Front

120/70ZR - 17M/C

Tyres Rear

160/60ZR - 17M/C

BRAKES

ABS System Type

2-channel

Type Front

Single wavy disk, 320mm, 2 piston caliper

Type Rear

Single wavy disk, 240mm, 1 piston caliper

INSTRUMENTS & ELECTRICS

Instruments

Digital speedometer, digital bar graph tachometer, dual trip meters, digital fuel level gauge & fuel consumption gauge, digital clock, gear position indicator

Security System

HISS (Honda Intelligent Security System)

Headlight

Low 4.8W. Hi 12W



Head to page two for the CBR500R >>>
