KTM RC125 and RC200 revealed
Two more baby sportsbikes from KTM

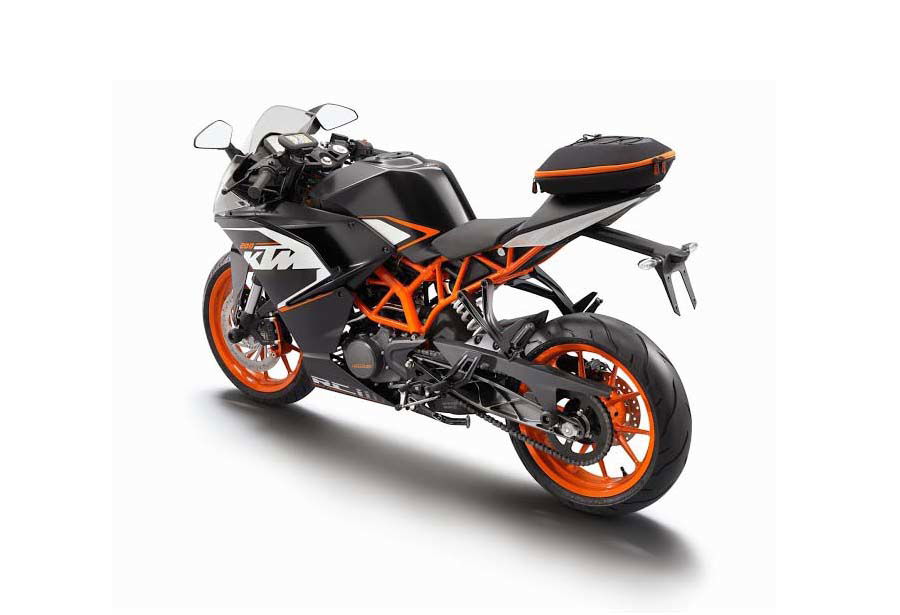

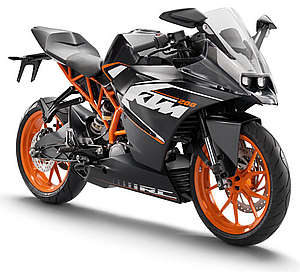

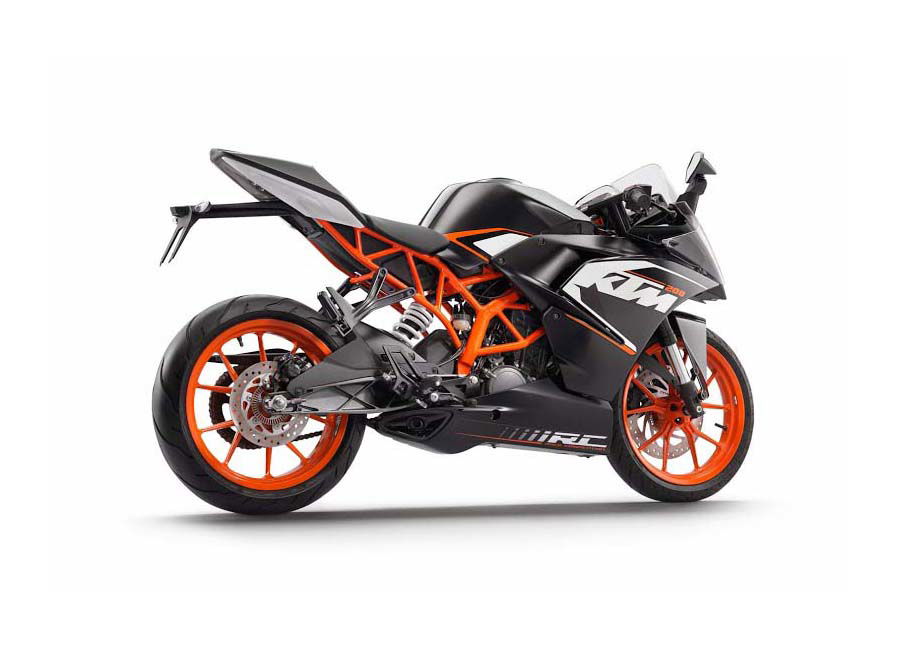

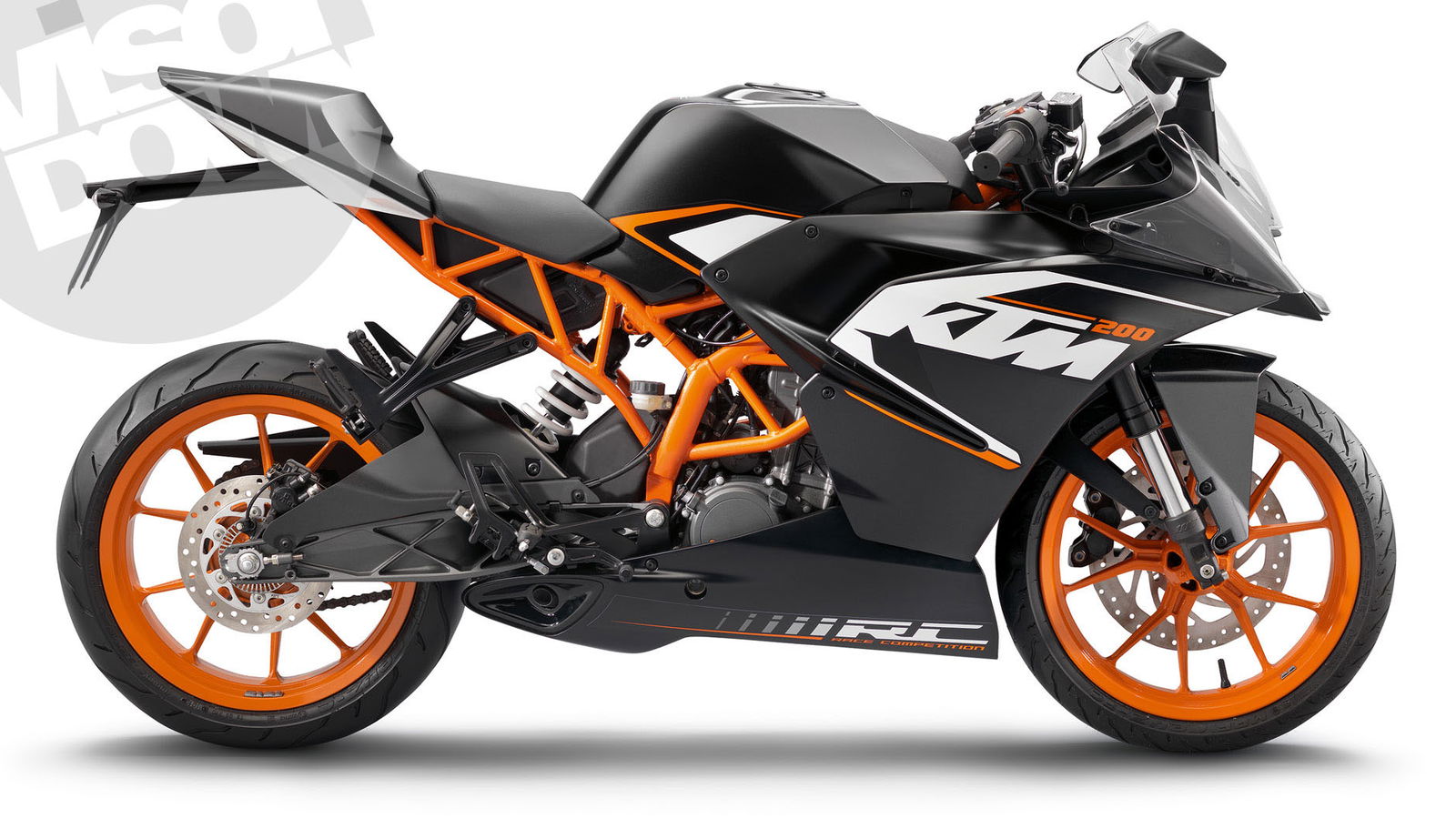

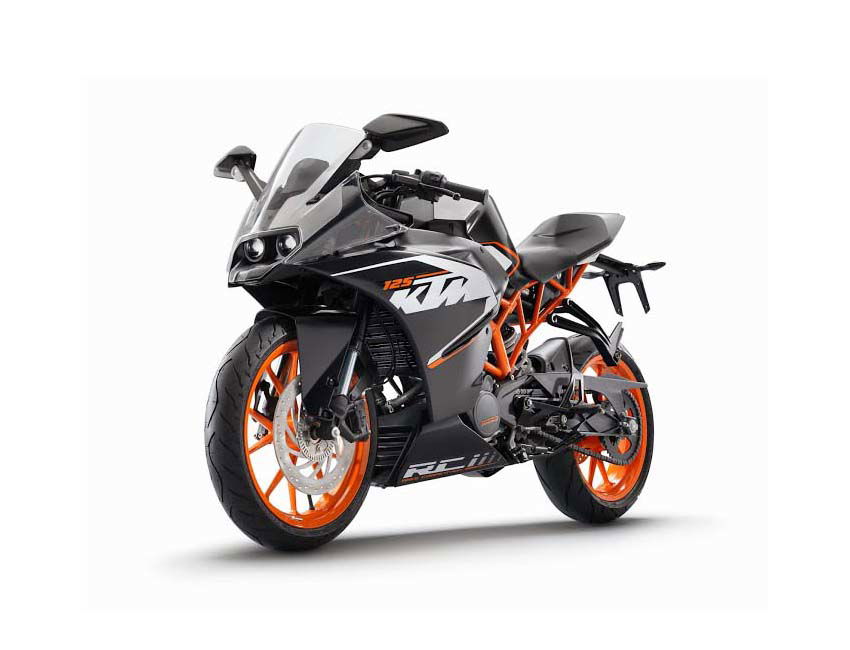

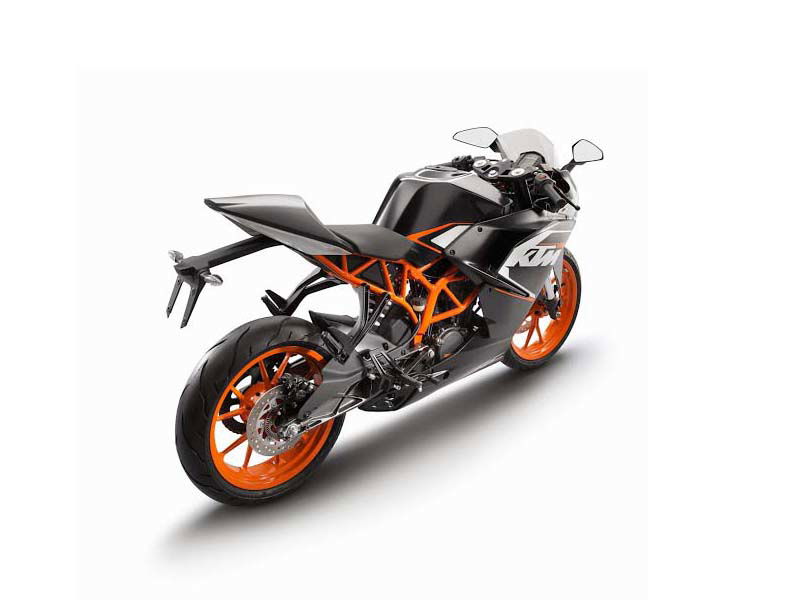

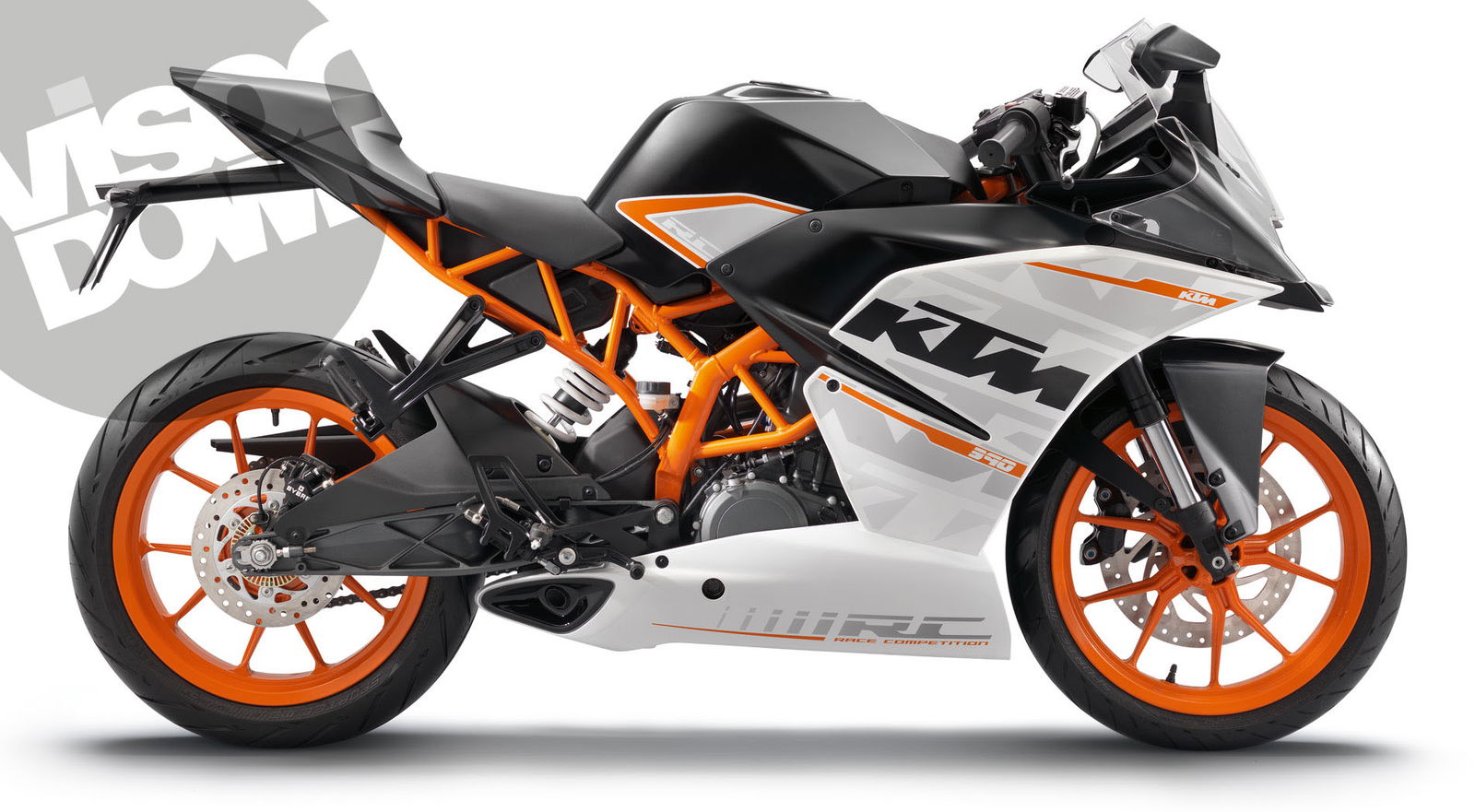

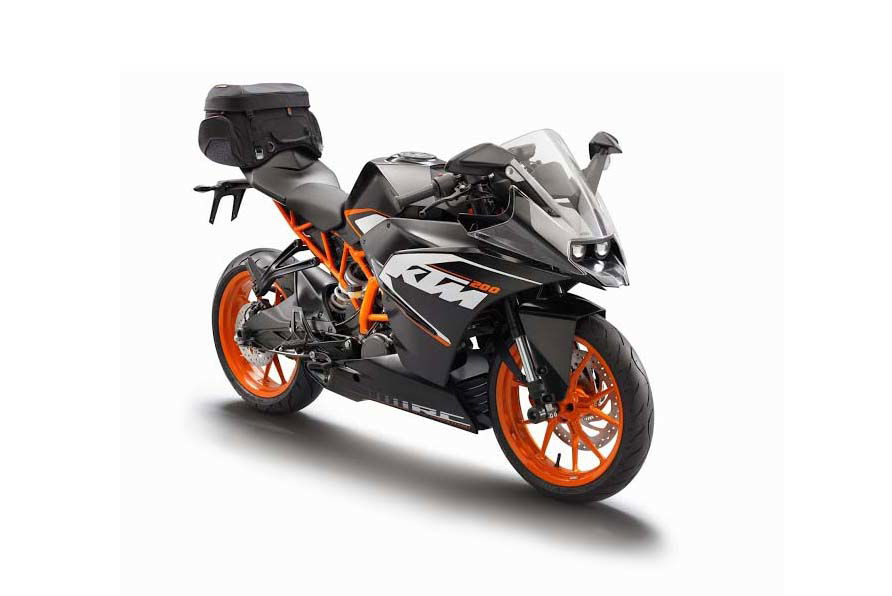

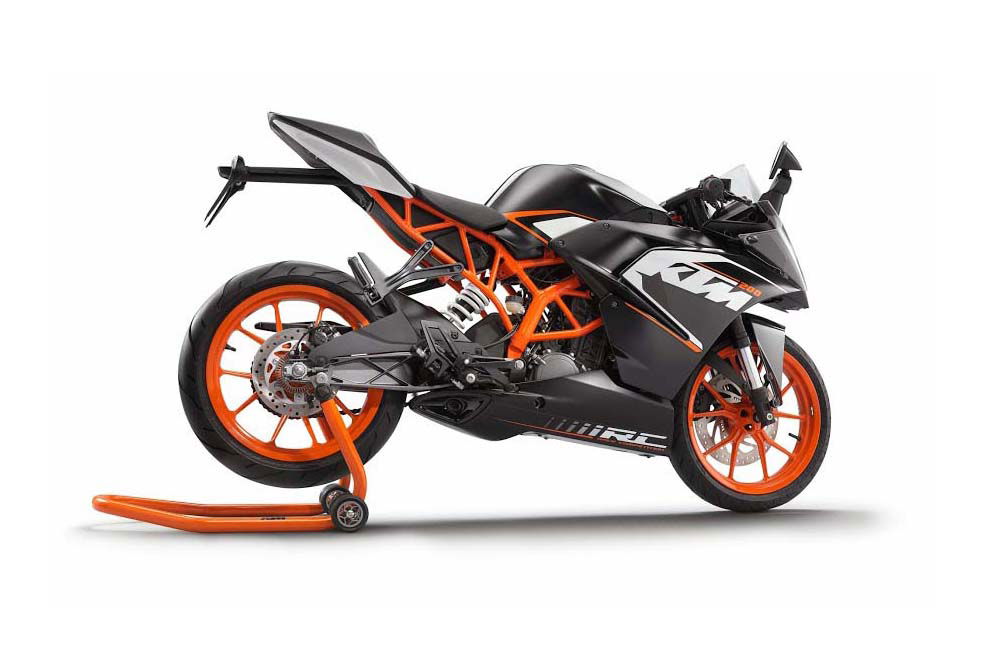

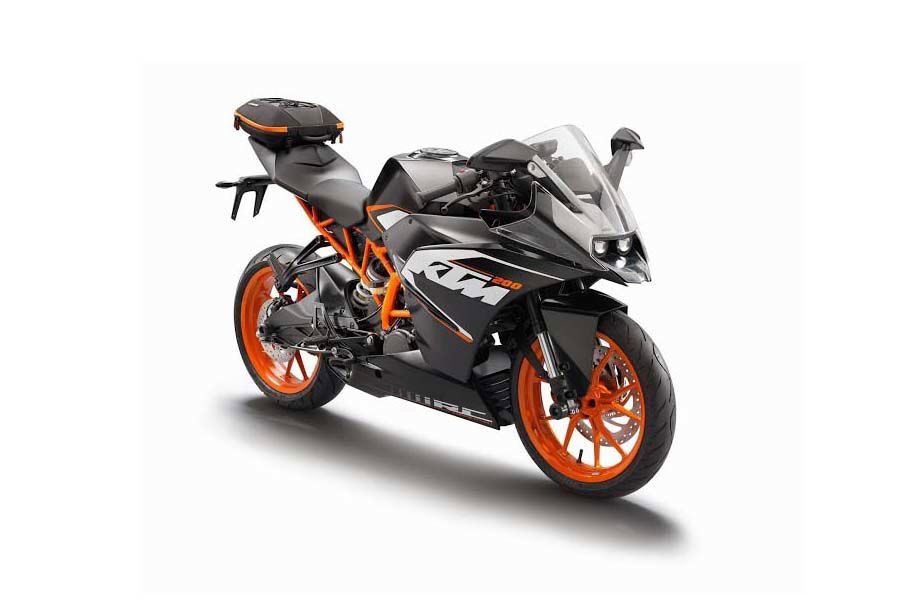

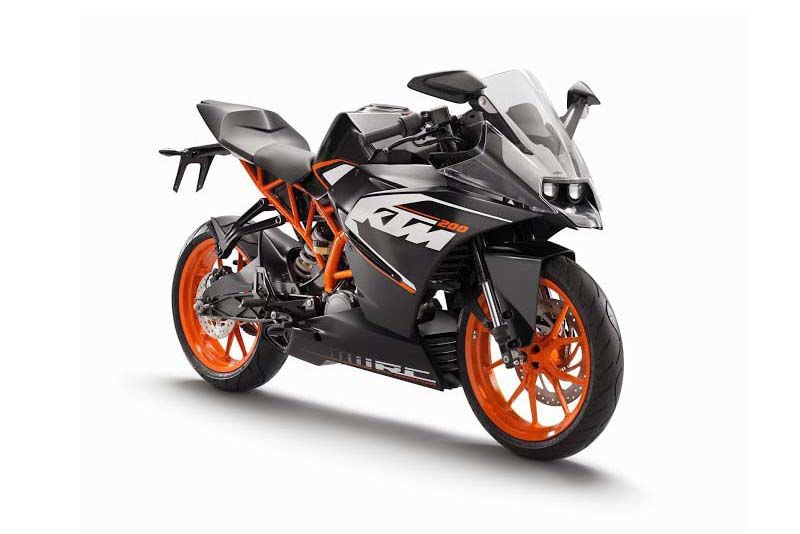

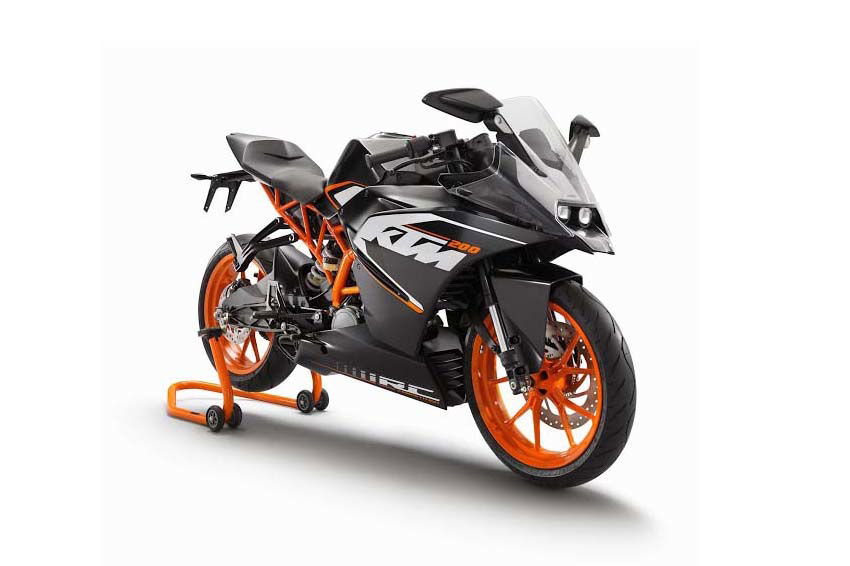

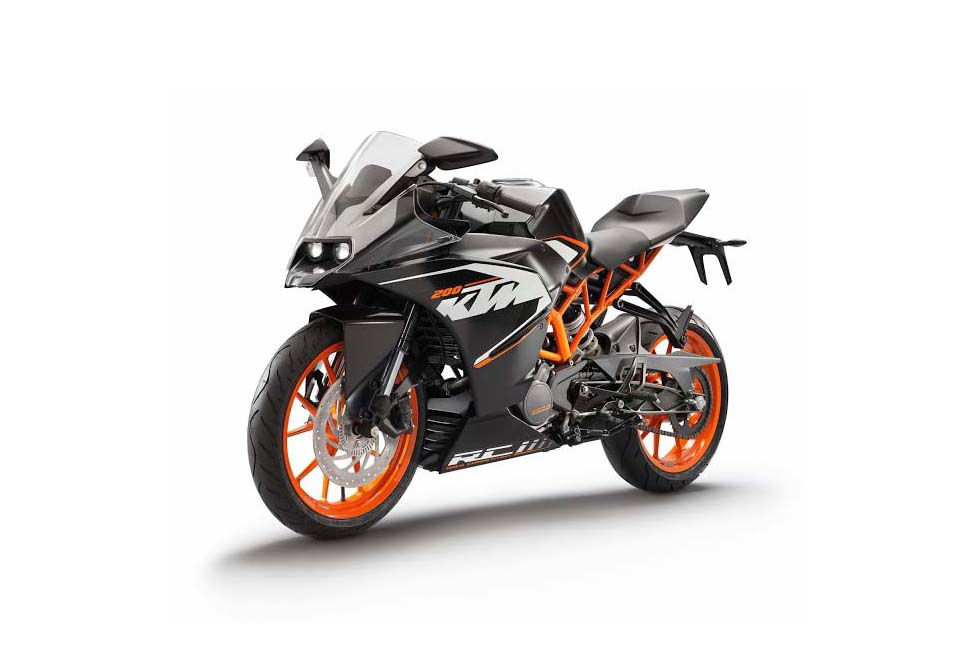

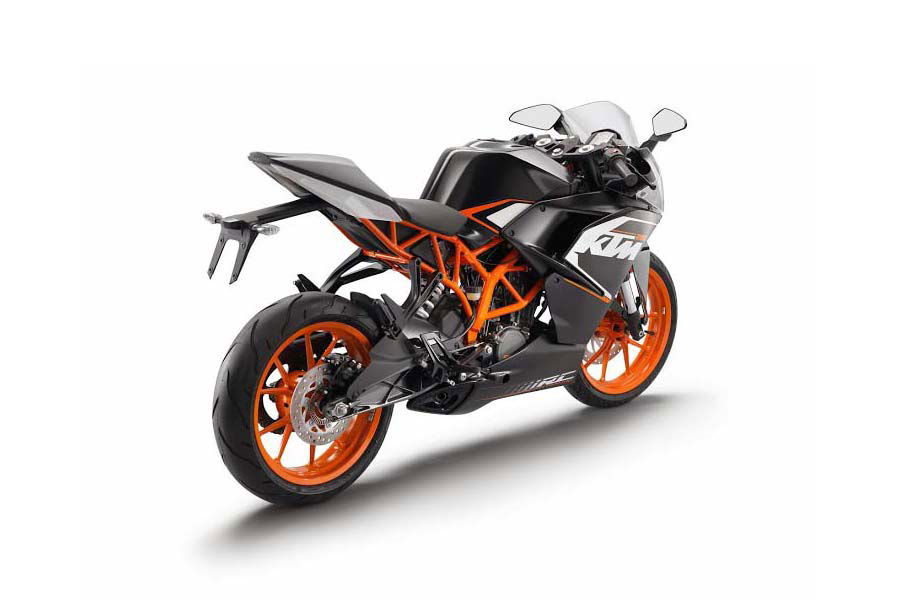

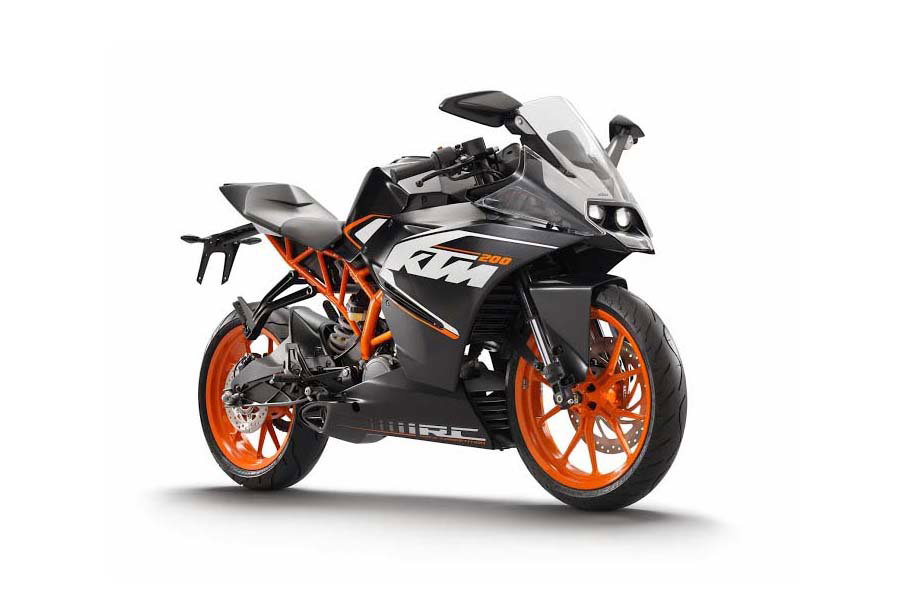

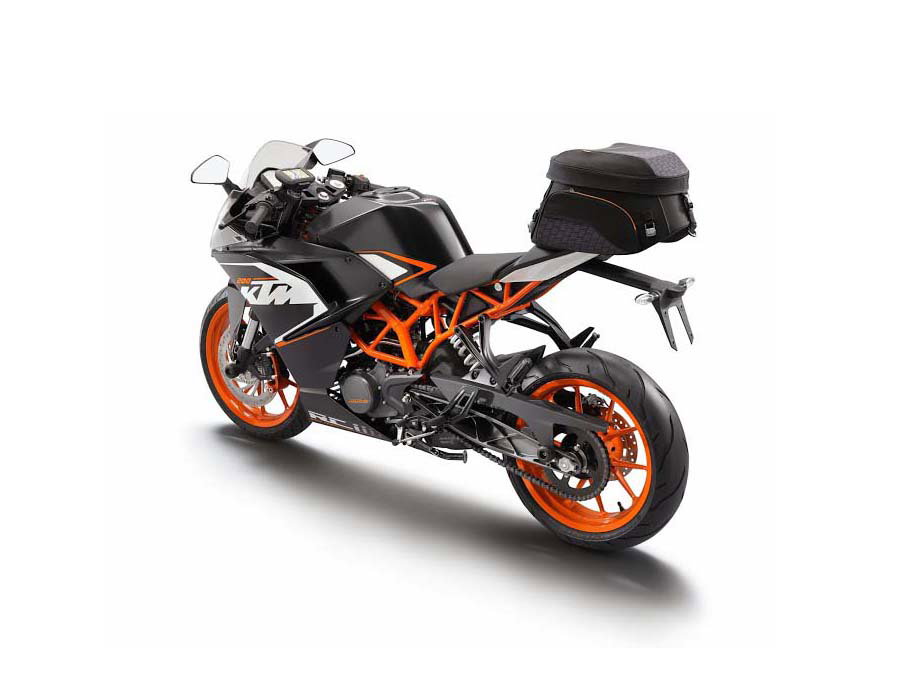

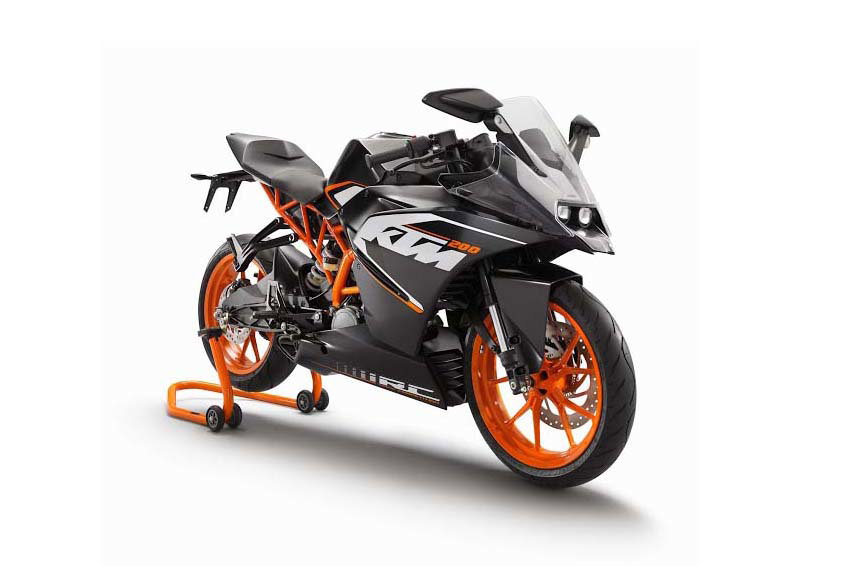

LAST week we revealed pictures of the new KTM RC390 and now we’ve got the RC125 and RC200 as well.
Unsurprisingly, the two smaller machines are virtually identical to each other and to the larger model, differing only in terms of colours and engine capacity/power.

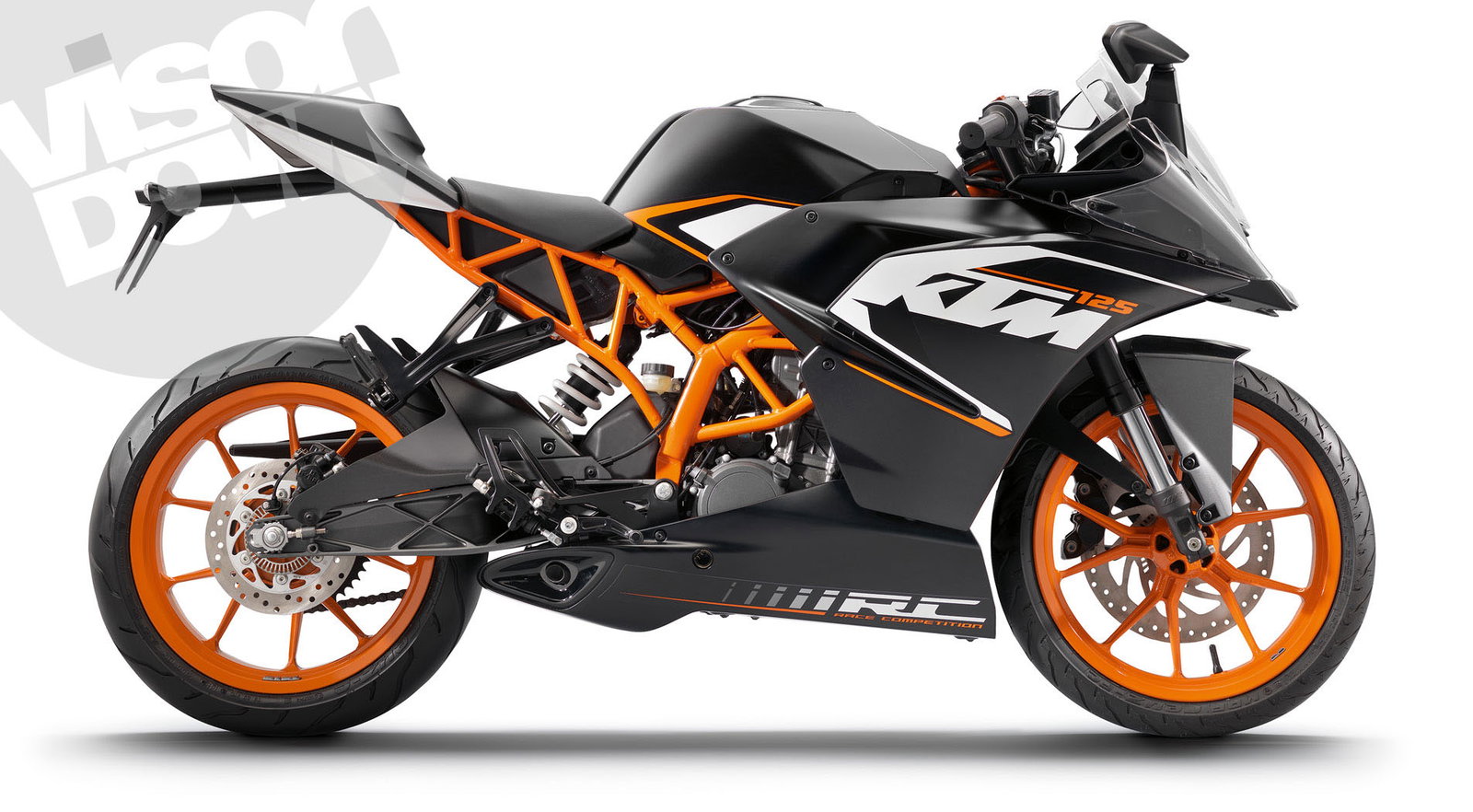

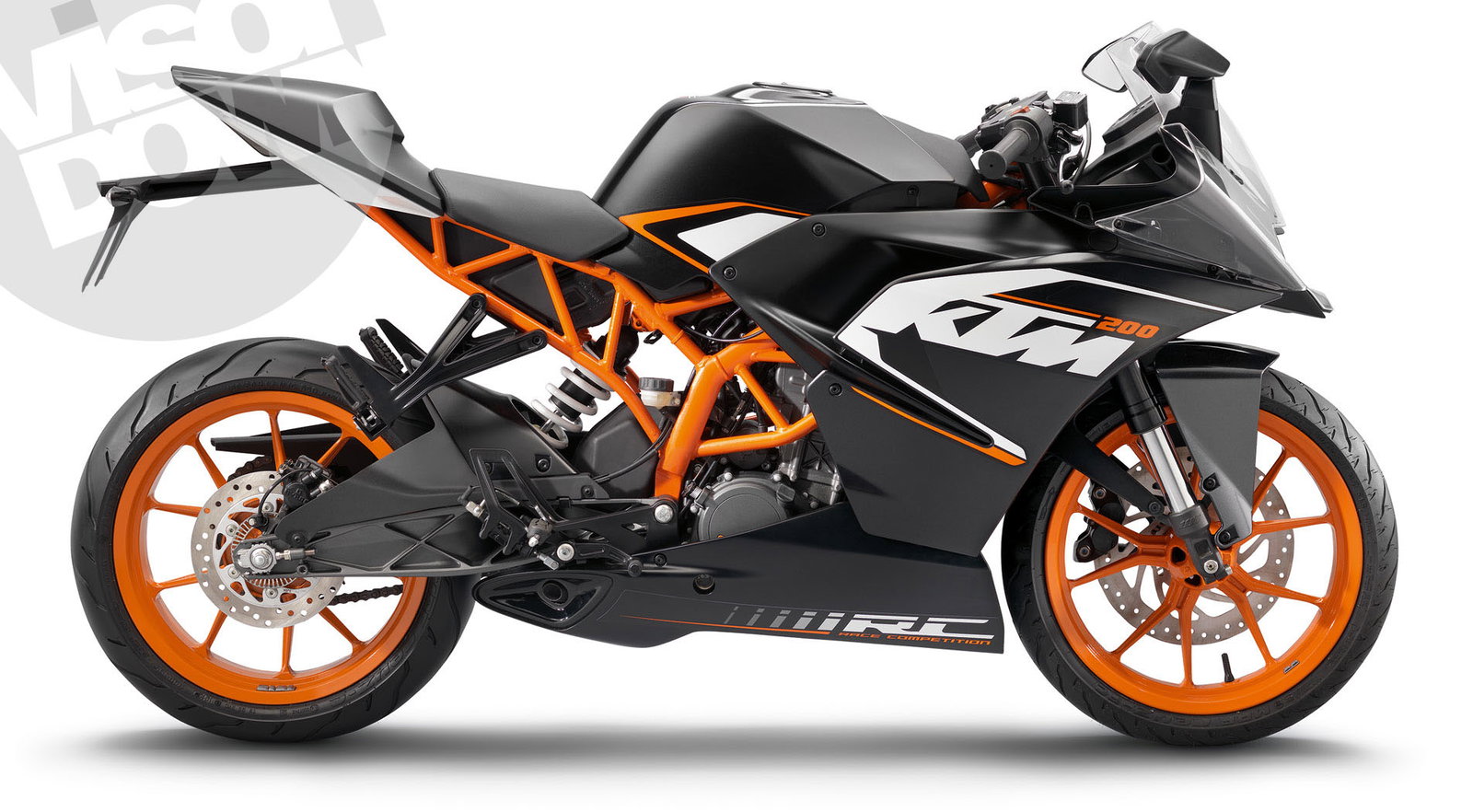

We’ve also uncovered the full specifications for the RC125, which once again are very similar to those for the RC390 – just with a 15bhp 124.7cc single instead of a 43bhp 373cc motor. Weight is also down from 147kg (minus fuel) for the 390 to 135kg for the 125. The 200’s specs haven’t been leaked yet, but they’ll be virtually the same as the 125s, just with the Duke 200’s 25bhp motor and a weight of around 137kg.
Visordown first told you there would be a new RC125 and 200 three weeks ago.
The full RC125 specifications are as follows:
ENGINE
| Design | 1-cylinder 4-stroke engine, water-cooled |
| Displacement | 1,24.7 cm³ |
| Bore | 58 mm |
| Stroke | 47.2 mm |
| Performance | 11 kW (15 hp) |
| Starting aid | Electric starter |
| Transmission | 6 speed, claw shifted |
| Engine lubrication | Forced oil lubrication with 1 Eaton pump |
| Primary gear ratio | 22:72 |
| Secondary gear ratio | 14:45 |
| Cooling system | Liquid cooling system, continuous circulation of cooling liquid with water pump |
| Clutch | Wet multi-disc clutch / mechanically operated |
| Ignition system | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment |
CHASSIS
| Frame | Tubular space frame made from steel tubes, powder-coated |
| Fork | WP Suspension 4357 |
| Shock absorber | WP Suspension 4618 EM |
| Suspension travel front | 125 mm |
| Suspension travel rear | 150 mm |
| Brake system Front | Disc brake with four-pot brake caliper |
| Brake system Rear | Disc brake with one-pot brake caliper, floating brake discs |
| Brake discs - diameter front | 300 mm |
| Brake discs - diameter rear | 230 mm |
| Chain | 5/8 x 1/4” X-Ring |
| Steering head angle | 66.5° |
| Wheel base | 1,340±15 mm |
| Ground clearance (unloaded) | 178.5 mm |
| Seat height (unloaded) | 820 mm |
| Total fuel tank capacity approx. | 10 l Unleaded premium fuel (95 RON) |
| Weight without fuel approx. | 135 kg |
